LD-UPW(10-30LPH)

Water flow speed:1.5-2L/min ( with pressure barrel)
Machine capacity:10/20/30L/H
RO water: desalination rate as high as 95-99%
UP water: resistivity 18.25MΩ.cm@25°C (higher than laboratory water standard)
TOC: <3 ppb,
pyrogen<0.001EU/ml,
particles (>0.22 um) <1/ml,
microorganism <1 cfu/ml

  • Commodity name： LD-UPW(10-30LPH)

Category:

LD-UPW(10-30LPH)

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Product Description:

    The LD-UPW(10-30LPH) is a state-of-the-art Quality ultra pure water system of china, designed to deliver exceptional water purification for laboratory, industrial, and medical applications. This system produces ultra-pure water with a resistivity of 18.25MΩ.cm@25°C, surpassing laboratory water standards. It features a high desalination rate of 95-99% for RO water and ensures ultra-low levels of TOC (<3 ppb), pyrogen (<0.001EU/ml), particles (>0.22 µm <1/ml), and microorganisms (<1 cfu/ml). With a capacity of 10/20/30L/H and a flow speed of 1.5-2L/min (with pressure barrel), it is suitable for various water quality conditions. The system is equipped with advanced features such as an online water quality monitoring system, automatic RO membrane anti-scaling flushing, and double electric water intakes for RO and UP water, ensuring convenience and reliability.

    As a leading example of Quality ultra pure water system of china, the LD-UPW(10-30LPH) combines cutting-edge technology with user-friendly design. Its NSF-certified pipelines, Korean quick-insert filter columns, and tool-free filter replacement make maintenance effortless. The system also includes a portable TDS pen for real-time water quality testing, ensuring consistent performance. Whether for research, manufacturing, or healthcare, this system provides a dependable solution for producing ultra-pure water. Choose the Quality ultra pure water system of china to meet your high-purity water needs with precision and efficiency.





    Specification

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Configuration

    LD-UPW series

    10L/H

    20L/H

    30L/H

    7-10 working days after payment

    1 year


    T/T 100% in advance





    Product Features

    ➣ Applicable to various water quality, the case is with powder coating.
    ➣ The filter element adopts open mold injection technology and inside the machine
    ➣ Korean quick-insert filter column is easy to replace and maintain
    ➣ The electrical appliance and waterways are completely separated to avoid circuit failure caused by moisture and water leakage.
    ➣ Online water quality monitoring system, immediately measure the output water quality.
    ➣ Automatic RO membrane anti-scaling flushing program, automatic stop when tap water break, automatic water breaking when machine stop, storage tank automatically fill water, automatic stopping when water is full.
    ➣ NSF certified pipeline has function of upgrading water quality and quantity
    ➣ Equipped with a portable TDS pen, you can test TDS content, conductance, water temperature anytime, anywhere.
    ➣ Double electric water intakes, two kinds water quality, ready to use. Pressure online monitoring.
    ➣ Open door at front and back, this make filters replacement easy&convenient, the replacement can be easily completed without using any tools.
    ➣ Double water intakes: RO water and UP water

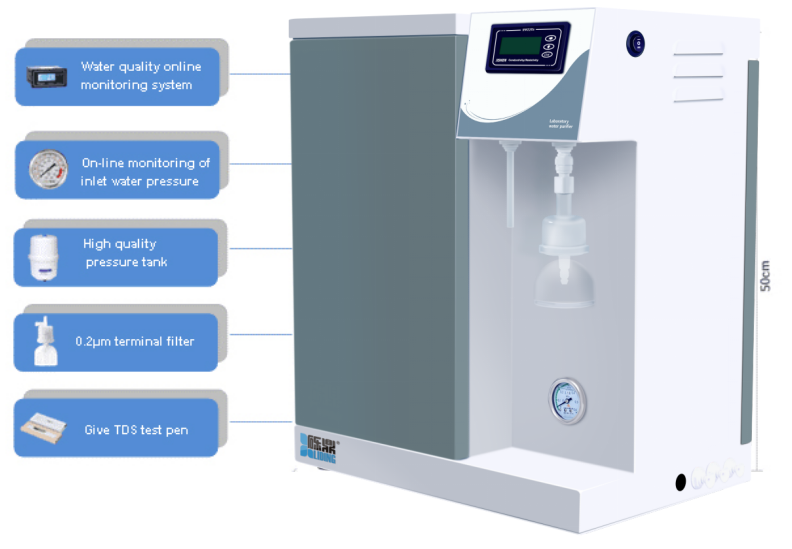

    Product Image

    Product parameter

    LD-UPW series ultrapure water machine

    Type classification

    Standard

    Low Endotoxin

    Low TOC

    Comprehensive

    The machine model

    LD-UPW

    LD-UPW-F

    LD-UPW-V

    LD-UPW-VF

    Water rate

    10/20/30 lph

    The water requirements

    Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃

    RO water Parameter

    Ion rejection rate

    97%-99% (when using a new RO membrane)

    Organic matter rejection rate

    >99% when MW>200 Dalton

    Particle and bacterial rejection

    > 99%

    UPwater Parameter(ASTM TYPE I grade water)

    Resistivity (25℃)

    18.25M Ω. Cm @ 25 ℃

    Heavy metal ion

    < 0.01 ppb

    Total organic carbon (TOC) *

    <10 ppb

    <3 ppb

    bacteria

    < 1cfu/ml*(with terminal filter)

    Particulate matter (> 0.1 microns)

    <1/ml

    Pyrogen (endotoxin)

    N/A

    < 0.001 Eu/ml

    N/A

    < 0.001 Eu/ml

    Ribonuclease (RNases)

    N/A

    <1pg/ml

    N/A

    <1pg/ml

    Deoxyribonucleases

    N/A

    <5pg/ml

    N/A

    <5pg/ml

    Application

    All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment

    High sensitivity ICP/MS, PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute

    Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, environmental monitoring, biochip development, trace organic matter analysis

    Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing

    Electrical requirements

    100-240V, 50/60Hz, 48-72W

    The system configuration

    Host machine (including 1 set of purification column)+12Lpressure water storage tank +TDS pen + accessory bag

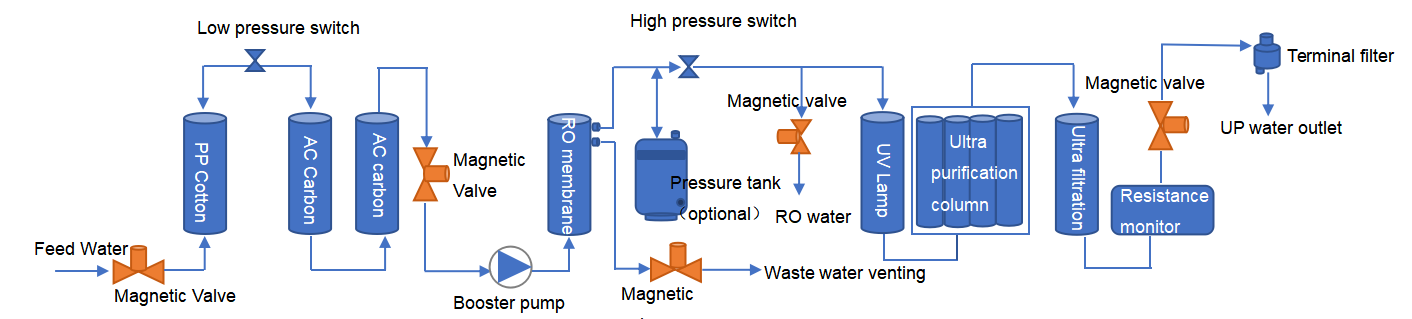

    Process(*LD-UPW-VF configuration)

    Filter consumables list

    Product name


    Function

    Replace cycle

    11" PP filter

    remove impurities (greater than 5 micron) such as suspended solid,rust, sludge, colloid, etc.

    About 4-6 month

    11" activated carbon filter

    removecolor, odor, residual chlorine and heavy metals

    About 4-6 month

    Reverse osmosis membrane

    filter out <1nm pollutants, ions, particles

    About 1-2 years

    Dual wavelength (185 & 254 nm) UV lamp

    sterilization device, decomposition and photooxidation OC, lower TOC(*-V,-VF)

    185nm: TOC removal

    254nm: sterilization

    About 9000 hours

    11" ultra-purification column

    ion exchange resin bed, H+and OH- ion removal

    About 1000 liter/pc

    Imported 5000 Dalton UF heat source column

    remove pyrogen,RNase, DNase(*-F,-VF)

    About 2-3 years

    0.2 μm PES terminal filter

    final removal for <0.2μmbacteria

    About 2-3 years

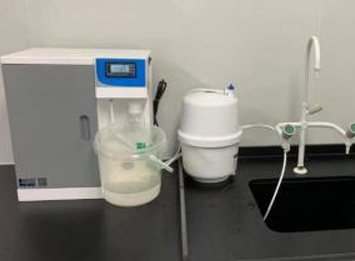

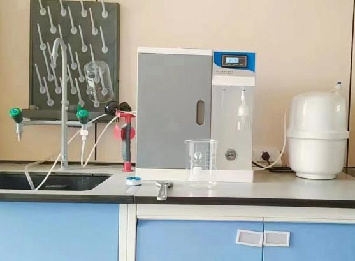

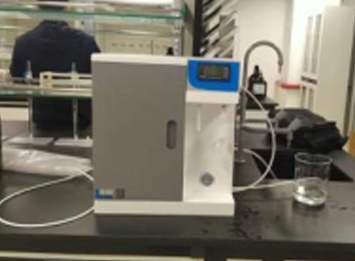

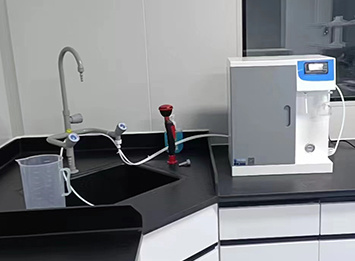

    User cases



    Machine SKU

    SKU

    Specification

    LD-UPW-10

    10L/H, Standard type, RO pure water, UP ultra-pure water

    LD-UPW-20

    20L/H, Standard type, RO pure water, UP ultra-pure water

    LD-UPW-30

    30L/H, Standard type, RO pure water, UP ultra-pure water

    LD-UPW-V-10

    10L/H, Low TOC type, RO pure water, UP ultra-pure water

    LD-UPW-V-20

    20L/H, Low TOC type, RO pure water, UP ultra-pure water

    LD-UPW-V-30

    30L/H, Low TOC type, RO pure water, UP ultra-pure water

    LD-UPW-F-10

    10L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    LD-UPW-F-20

    20L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    LD-UPW-F-30

    30L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    LD-UPW-VF-10

    10L/H, Comprehensive type, RO pure water, UP ultra-pure water

    LD-UPW-VF-20

    20L/H, Comprehensivetype, RO pure water, UP ultra-pure water

    LD-UPW-VF-30

    30L/H,Comprehensive type, RO pure water, UP ultra-pure water
