LD-WFUP(10-30LPH)

RO pure water:
desalination rate as high as 95-99% ,
Conductivity ≤10μS/cm
Ultrapure water:
resistivity 18.25MΩ.cm@25°C,
TOC: <3 ppb,
particles (>0.22 um) <1/ml,
microorganism <1 cfu/m,
pyrogen<0.001EU/ml,
RNases≤0.01ng/ml,
DNases≤3Pg/ml/ul

  • Commodity name： LD-WFUP(10-30LPH)

Category:

LD-WFUP(10-30LPH)

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Specification

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Configuration

    LD-WFUP series

    10L/H

    20L/H

    30L/H

    7-10 working days after payment


    1 year

    T/T 100% in advance





    Product Features

    ➣ Applicable to various water quality, the case is with powder coating.
    ➣ All filter elements in the whole system adopt open mold injection technology and built-in chassis

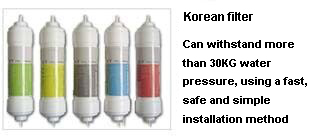

    ➣ Korean quick-connect filter column is easy to replace and maintain.
    ➣ The electrical and waterways are completely separated to avoid circuit failure caused by moisture and water leakage.
    ➣ Water quality online monitoring system.
    ➣ Automatic RO membrane anti-scaling flushing program, automatic shutdown of tap water, automatic water cut off, automatic water supply in the storage bucket, automatic shutdown of the water storage tank.
    ➣ All pipelines are NSF certified and have water quality and water upgrade capabilities.
    ➣ Equipped with a portable TDS pen, you can test TDS content, conductance, water temperature anytime, anywhere.
    ➣ Double electric water intake, two water quality, ready to use.
    ➣ Open the door design before and after, it is quick and easy to replace the filter element, and the filter replacement can be easily completed without using any tools.



    Product Description:
    The LD-WFUP(10-30LPH) exemplifies quality ultra pure water system engineering, featuring a multi-stage purification process that achieves >99% desalination (conductivity ≤10μS/cm) and produces ultrapure water with near-zero contaminants (<1cfu/ml microorganisms, <0.001EU/ml pyrogens). As specialists in the newest ultra pure water system from china, we've incorporated Korean quick-connect filter technology and NSF-certified pipelines for easy maintenance and guaranteed material safety. The system's intelligent monitoring and automatic flushing programs ensure uninterrupted operation while preventing membrane scaling.

    Designed for user convenience, this system offers dual water quality outputs (RO and ultrapure) with front/back access doors for tool-free filter replacement. The powder-coated enclosure houses completely separated electrical/water circuits to prevent moisture damage, while the built-in TDS pen allows instant water quality verification. For research facilities and industrial users requiring a quality ultra pure water system that combines reliability with advanced purification capabilities, our LD-WFUP series from China's water technology leaders delivers laboratory-grade performance in a compact, automated package.

    Key Features:

    • 18.25MΩ.cm ultrapure water output

    • <3ppb TOC and <1 particle/ml (>0.22μm)

    • Automatic RO membrane flushing system

    • NSF-certified materials and pipelines

    • Tool-free filter replacement design

    • Real-time water quality monitoring

    • Dual-output for RO/ultrapure water needs



    Product Image

    Product parameter

    LD-WFUP series ultrapure water machine

    Type classification

    Standard

    Low Endotoxin

    Low TOC

    Comprehensive

    The machine model

    LD-WFUP

    LD-WFUP-F

    LD-WFUP-V

    LD-WFUP-VF

    Water rate

    10/20/30 lph

    The water requirements

    Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃

    RO water Parameter

    Ion rejection rate

    97%-99% (when using a new RO membrane)

    Organic matter rejection rate

    >99% when MW>200 Dalton

    Particle and bacterial rejection

    > 99%

    UP water Parameter(ASTM TYPE I grade water)

    Resistivity (25℃)

    18.25 M Ω. Cm @ 25 ℃

    Heavy metal ion

    < 0.01 ppb

    Total organic carbon (TOC) *

    <10 ppb

    <3 ppb

    bacteria

    < 1 cfu/ml *(with terminal filter)

    Particulate matter (> 0.1 microns)

    <1/ml

    Pyrogen (endotoxin)

    N/A

    < 0.001 Eu/ml

    N/A

    < 0.001 Eu/ml

    Ribonuclease (RNases)

    N/A

    <1pg/ml

    N/A

    <1pg/ml

    Deoxyribonucleases

    N/A

    <5pg/ml

    N/A

    <5pg/ml

    Application

    All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment

    High sensitivity ICP/MS, PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute

    Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, environmental monitoring, biochip development, trace organic matter analysis

    Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing

    Electrical requirements

    100-240V, 50/60Hz, 48-72W

    The system configuration

    Host machine (including 1 set of purification column)+12L pressure water storage tank +TDS pen + accessory bag

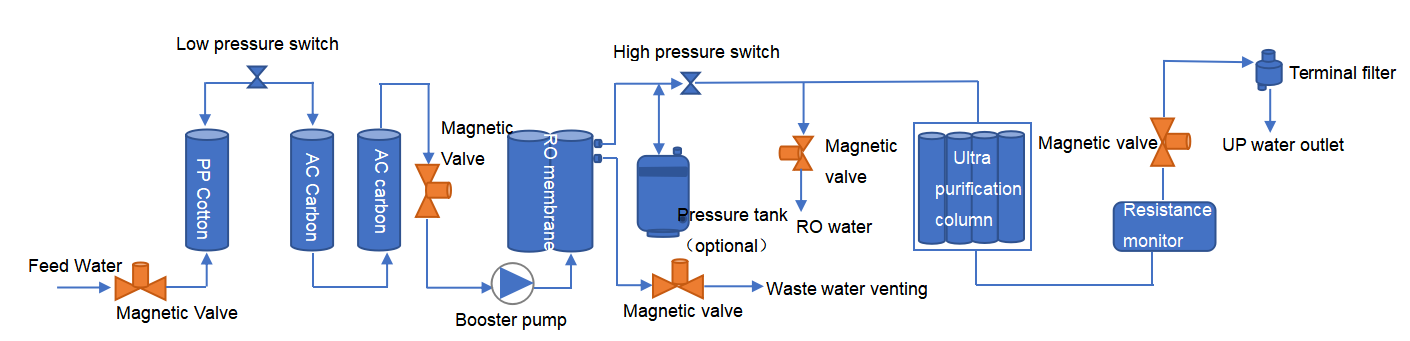

    Process

    Filter function

    Product name


    Function

    Replace cycle

    11" PP filter

    remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

    About 4-6 month

    11" activated carbon filter

    remove color, odor, residual chlorine and heavy metals

    About 4-6 month

    Reverse osmosis membrane

    filter out <1nm pollutants, ions, particles

    About 1-2 years

    Dual wavelength (185 & 254 nm) UV lamp

    sterilization device, decomposition and photo oxidation OC, lower TOC  (*-V,-VF)

    185nm: TOC removal

    254nm: sterilization

    About 9000 hours

    11" ultra-purification column

    ion exchange resin bed, H+ and OH- ion removal

    About 1000 liter/pc

    Imported 5000 Dalton UF heat source column

    remove pyrogen,RNase, DNase(*-F,-VF)

    About 2-3 years

    0.2 μm PES terminal filter

    final removal for < 0.2μm bacteria

    About 2-3 years



    Machine SKU

    SKU

    Specification

    LD-WFUP-10

    10L/H, Standard type, RO pure water, UP ultra-pure water

    LD-WFUP-20

    20L/H, Standard type, RO pure water, UP ultra-pure water

    LD-WFUP-30

    30L/H, Standard type, RO pure water, UP ultra-pure water

    LD-WFUP-V-10

    10L/H, Low TOC type, RO pure water, UP ultra-pure water

    LD-WFUP-V-20

    20L/H, Low TOC type, RO pure water, UP ultra-pure water

    LD-WFUP-V-30

    30L/H, Low TOC type, RO pure water, UP ultra-pure water

    LD-WFUP-F-10

    10L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    LD-WFUP-F-20

    20L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    LD-WFUP-F-30

    30L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    LD-WFUP-VF-10

    10L/H, Comprehensive type, RO pure water, UP ultra-pure water

    LD-WFUP-VF-20

    20L/H, Comprehensive type, RO pure water, UP ultra-pure water

    LD-WFUP-VF-30

    30L/H,Comprehensive type, RO pure water, UP ultra-pure water
