STAR(10-30LPH)

RO pure water: desalination rate as high as 95-99% , Conductivity ≤10μS/cm
Ultrapure water:
resistivity 18.25MΩ.cm@25°C,
TOC: <3 ppb,
particles (>0.22 um) <1/ml,
microorganism <1 cfu/ml,
pyrogen<0.001EU/ml,
RNases≤0.01ng/ml,
DNases≤3Pg/ul

  • Commodity name： STAR(10-30LPH)

Category:

STAR(10-30LPH)

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Specification

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Configuration

    STAR series

    10L/H

    20L/H

    30L/H

    7-10 working days after payment

    1 year

    T/T 100% in advance

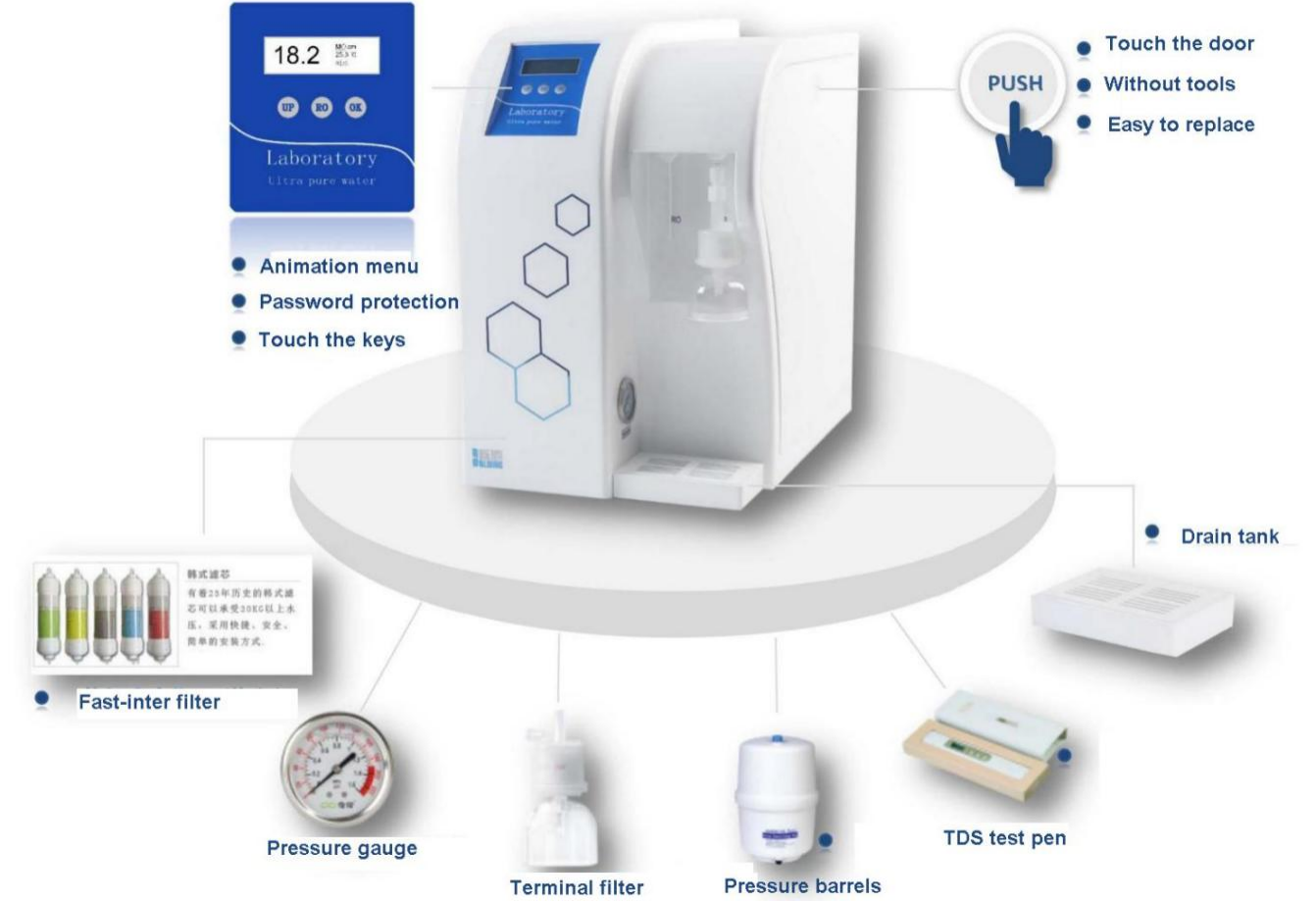

    Product Features

    ➣ The case adopts ABS plastic spraying process; the appearance adopts curve design to be more beautiful and generous with removable drain tank
    ➣ All Korean-style quick-inserted filter columns in the entire system are built into the chassis; easy maintenance and replacement;
    ➣ Water quality online monitoring system, which can measure the water quality of the produced water immediately;
    ➣ Equipped with a portable TDS pen, which can test TDS content, conductance and water temperature anytime and anywhere;
    ➣ Touch the keys, two water quality, ready to use;
    ➣ Touch the door to open the door design, the replacement of the filter element is simple and fast, the entire process does not require any tools, and the filter element replacement is easily completed;
    ➣ Chinese LCD display and user-friendly operation interface allow you to fully monitor the working status and real-time data of the controller;
    ➣ Four user passwords and factory password protection;
    ➣ Perfect RO pure water and ultra pure water to make water, system water extraction, system flushing and other functions.
    ➣ Perfect raw water pressure display, no water protection, high pressure water full protection functions and fault alarm function.
    ➣ Complete consumable life management function, support the unique ID identification function of consumables, and eliminate counterfeit and inferior non-original consumables. (Optional)
    ➣ It adopts low-voltage 24VDC as the main power supply, which complies with the safety regulations and meets the use in humid environments without causing harm to people.

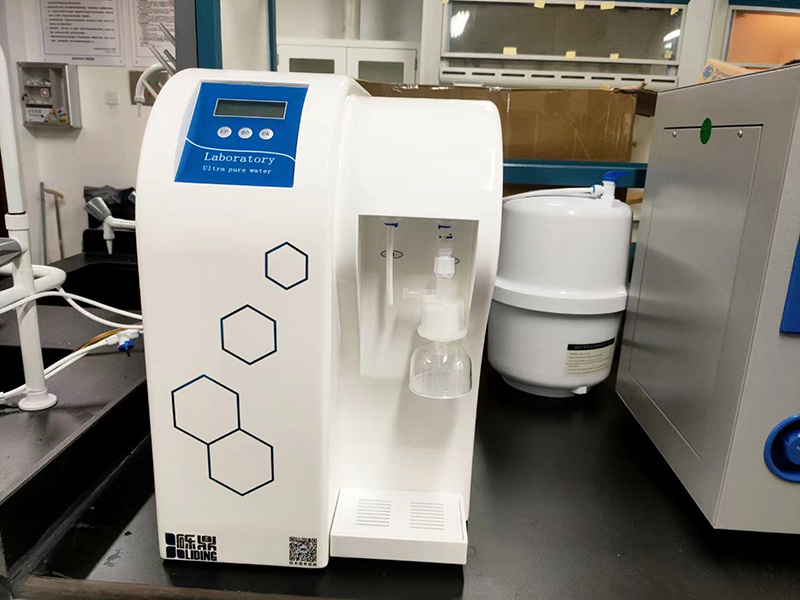

    Product Image

    Product parameter

    STAR series ultrapure water machine

    Type classification

    Standard

    Low Endotoxin

    Low TOC

    Comprehensive

    The machine model

    STAR

    STAR-F

    STAR-V

    STAR-VF

    Water rate

    10/20/30 lph

    The water requirements

    Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃

    RO water Parameter

    Ion rejection rate

    97%-99% (when using a new RO membrane)

    Organic matter rejection rate

    >99% when MW>200 Dalton

    Particle and bacterial rejection

    > 99%

    UP water Parameter(ASTM TYPE I grade water)

    Resistivity (25℃)

    18.25 M Ω. Cm @ 25 ℃

    Heavy metal ion

    < 0.01 ppb

    Total organic carbon (TOC) *

    <10 ppb

    <3 ppb

    bacteria

    < 1 cfu/ml *(with terminal filter)

    Particulate matter (> 0.1 microns)

    <1/ml

    Pyrogen (endotoxin)

    N/A

    < 0.001 Eu/ml

    N/A

    < 0.001 Eu/ml

    Ribonuclease (RNases)

    N/A

    <1pg/ml

    N/A

    <1pg/ml

    Deoxyribonucleases

    N/A

    <5pg/ml

    N/A

    <5pg/ml

    Application

    All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment

    High sensitivity ICP/MS, PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute

    Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, environmental monitoring, biochip development, trace organic matter analysis

    Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing

    Electrical requirements

    100-240V, 50/60Hz, 48-72W

    The system configuration

    Host machine (including 1 set of purification column)+12L pressure water storage tank +TDS pen + accessory bag



    Process(*STAR-VF configuration)

    Filter consumables list

    Product name


    Function

    Replace cycle

    11" PP filter

    remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

    About 4-6 month

    11" activated carbon filter

    remove color, odor, residual chlorine and heavy metals

    About 4-6 month

    Reverse osmosis membrane

    filter out <1nm pollutants, ions, particles

    About 1-2 years

    Dual wavelength (185 & 254 nm) UV lamp

    sterilization device, decomposition and photo oxidation OC, lower TOC  (*-V,-VF)

    185nm: TOC removal

    254nm: sterilization

    About 9000 hours

    11" ultra-purification column

    ion exchange resin bed, H+ and OH- ion removal

    About 1000 liter/pc

    Imported 5000 Dalton UF heat source column

    remove pyrogen,RNase, DNase(*-F,-VF)

    About 2-3 years

    0.2 μm PES terminal filter

    final removal for < 0.2μm bacteria

    About 2-3 years

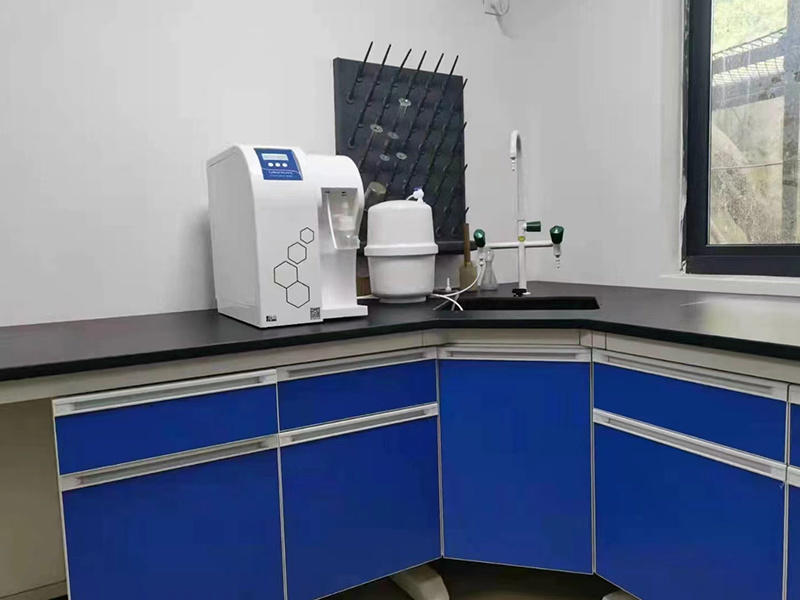

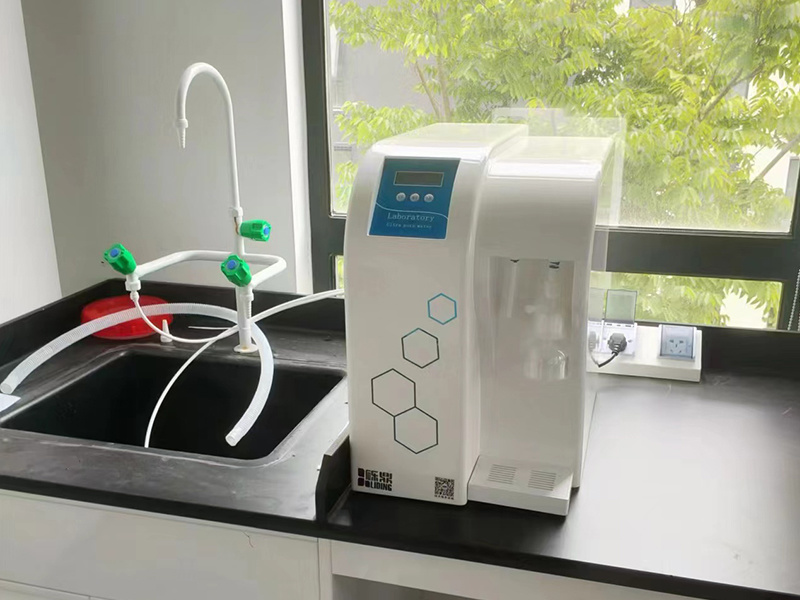

    User cases



    Machine SKU

    SKU

    Specification

    STAR-10

    10L/H, Standard type, RO pure water, UP ultra-pure water

    STAR-20

    20L/H, Standard type, RO pure water, UP ultra-pure water

    STAR-30

    30L/H, Standard type, RO pure water, UP ultra-pure water

    STAR-V-10

    10L/H, Low TOC type, RO pure water, UP ultra-pure water

    STAR-V-20

    20L/H, Low TOC type, RO pure water, UP ultra-pure water

    STAR-V-30

    30L/H, Low TOC type, RO pure water, UP ultra-pure water

    STAR-F-10

    10L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    STAR-F-20

    20L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    STAR-F-30

    30L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    STAR-VF-10

    10L/H, Comprehensive type, RO pure water, UP ultra-pure water

    STAR-VF-20

    20L/H, Comprehensive type, RO pure water, UP ultra-pure water

    STAR-VF-30

    30L/H,Comprehensive type, RO pure water, UP ultra-pure water
