MT(10-30LPH)

RO pure water:
desalination rate as high as 95-99% ,
Conductivity ≤10μS/cm
Ultrapure water:
resistivity 18.25MΩ.cm@25°C,
TOC: <3 ppb,
particles (>0.22 um) <1/ml,
microorganism <1 cfu/ml

  • Commodity name： MT(10-30LPH)

Category:

MT(10-30LPH)

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Specification

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Remark

    MT series

    10L/H

    20L/H

    30L/H

    7-10 working days after payment

    1 year

    T/T 100% in advance





    Product feature

    ➣ Built-in filter, with 10 micron 316L stainless steel precision filter screen to remove fine impurities instead of PP cotton filter; manual drain valve, automatic cleaning at any time, soft scraping design for more thorough drainage, transparent shell make filtration effect visual.
    ➣ The long-acting KDF device adopts the original imported filter material . It removes residual chlorine, heavy metals, and inhibits the growth of fungi at the front of water purification. It has a long service life, better protects the post-purification system, and extends lifetime of ultra-purification column
    ➣ Built-in pressure tank which has inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.
    ➣ ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, door is open at the side
    ➣ Type U Korean quick-insert filters, used imported filtering materials.
    ➣ Backlight LCD display,dual waterway online monitoring, which can simultaneously display RO conductivity value,UP resistance value and equipment operating status indication.
    ➣ ➣ Menu-type operation, parameters can be set and modified, operating status display and indication light indicate to promptly reflect machine operating status such as high-pressure shutdown, low-pressure alarm, water full shutdown, etc.
    ➣ Alarming for water quality exceeding, automatic filters replacement reminding, water intake time can be set. Take water by touched key, Automatic indication light indicate RO and UP water intake.
    ➣ Equipped with a portable test pen, which can test TDS content, conductance and water temperature anytime, anywhere
    ➣ The pipeline adopts a quick-plug interface, the pipe joint passes NSF certification, dual-wavelength UV lamps, effectively sterilizes and reduces TOC, and the original imported 5000D ultra filtration module effectively removes pyrogen.
    ➣ With RS-232C communication interface output, it can be connected with intelligent instruments with RS-232C interface to realize the transmission of measurement data or print records (optional)

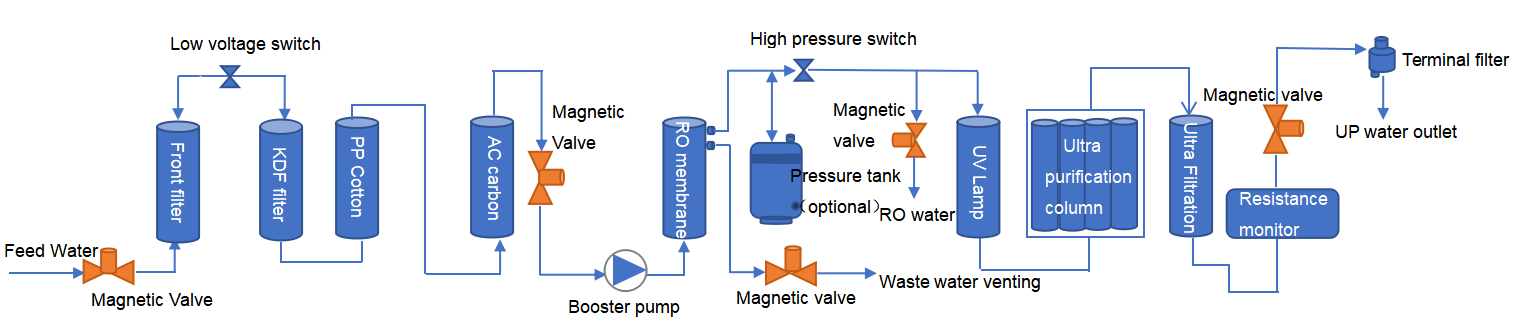

    Process(*MT-VF configuration)

    Parameter

    MT series ultrapure water machine

    Type classification

    Standard

    Low Endotoxin

    Low TOC

    Comprehensive

    The machine model

    MT

    MT-F

    MT-V

    MT-VF

    Water rate

    10/20/30 lph

    The water requirements

    Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃

    RO water Parameter

    Ion rejection rate

    97%-99% (when using a new RO membrane)

    Organic matter rejection rate

    >99% when MW>200 Dalton

    Particle and bacterial rejection

    > 99%

    UP water Parameter(ASTM TYPE I grade water)

    Resistivity (25℃)

    18.25 M Ω. Cm @ 25 ℃

    Heavy metal ion

    < 0.01 ppb

    Total organic carbon (TOC) *

    <10 ppb

    <3 ppb

    bacteria

    < 1 cfu/ml *(with terminal filter)

    Particulate matter (> 0.1 microns)

    <1/ml

    Pyrogen (endotoxin)

    N/A

    < 0.001 Eu/ml

    N/A

    < 0.001 Eu/ml

    Ribonuclease (RNases)

    N/A

    <1pg/ml

    N/A

    <1pg/ml

    Deoxyribonucleases

    N/A

    <5pg/ml

    N/A

    <5pg/ml

    Application

    All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment

    High sensitivity ICP/MS, PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute

    Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, environmental monitoring, biochip development, trace organic matter analysis

    Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing

    Electrical requirements

    100-240V, 50/60Hz, 48-72W

    The system configuration

    Host machine (including 1 set of purification column)+8 L built-in pressure water storage tank +TDS pen + accessory bag

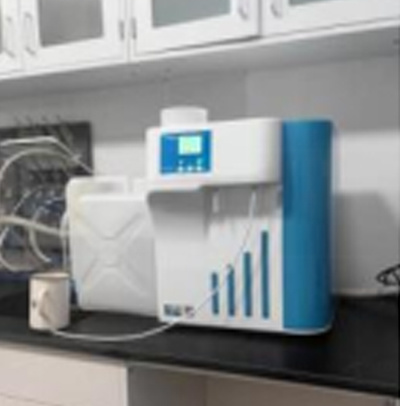

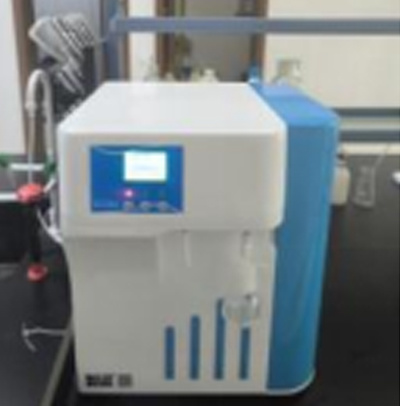

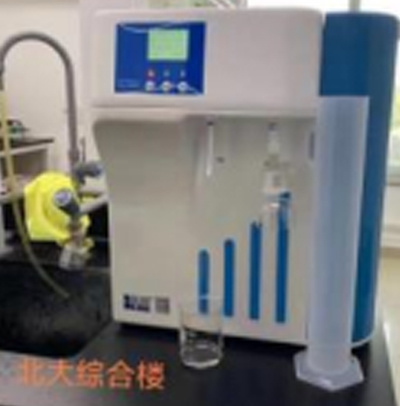

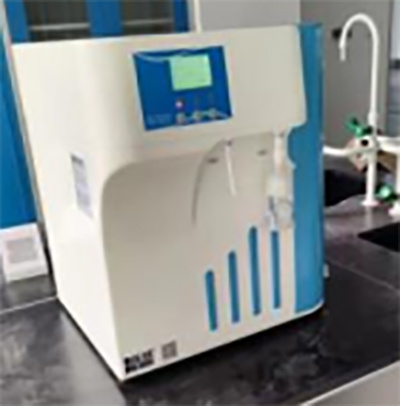

    User cases

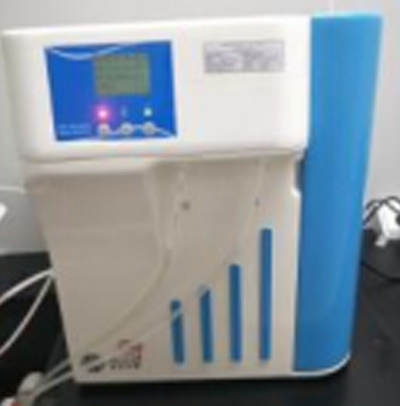

    Machine Picture

    Filter consumables list

    Product name


    Function

    Replace cycle

    Front filter

    10 micron 316 stainless steel washable filter, remove minor impurities,extend PP cotton lifetime.

    /

    KDF composite filter

    Remove residual chlorine,heavy metals, retrain fungi breed, lifetime is very long, can protect post-positive filters.

    About 1 year

    11" PP filter

    remove impurities (greater than 5 micron) such as suspended solid,rust, sludge, colloid, etc.

    About 4-6 month

    11" activated carbon filter

    removecolor, odor, residual chlorine and heavy metals

    About 4-6 month

    Reverse osmosis membrane

    filter out <1nm pollutants, ions, particles

    About 1-2 years

    Dual wavelength (185 & 254 nm) UV lamp

    sterilization device, decomposition and photooxidation OC, lower TOC(*-V,-VF)

    185nm: TOC removal；254nm: sterilization

    About 9000 hours

    11"ultra-purification column

    ion exchange resin bed, H+and OH- ion removal

    About 1000 liter/pc

    Imported 5000 Dalton UF heat source column

    remove pyrogen,RNase, DNase(*-F,-VF)

    About 2-3 years

    0.2 μm PES terminal filter

    final removal for <0.2μmbacteria

    About 2-3 years



    Machine SKU

    SKU

    Specification

    MT-10

    10L/H, Standard type, RO pure water, UP ultra-pure water

    MT-20

    20L/H, Standard type, RO pure water, UP ultra-pure water

    MT-30

    30L/H, Standard type, RO pure water, UP ultra-pure water

    MT-V-10

    10L/H, Low TOC type, RO pure water, UP ultra-pure water

    MT-V-20

    20L/H, Low TOC type, RO pure water, UP ultra-pure water

    MT-V-30

    30L/H, Low TOC type, RO pure water, UP ultra-pure water

    MT-F-10

    10L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    MT-F-20

    20L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    MT-F-30

    30L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    MT-VF-10

    10L/H, Comprehensive type, RO pure water, UP ultra-pure water

    MT-VF-20

    20L/H, Comprehensivetype, RO pure water, UP ultra-pure water

    MT-VF-30

    30L/H,Comprehensive type, RO pure water, UP ultra-pure water
