MT-DI(10-30LPH)

  • Commodity name： MT-DI(10-30LPH)

Category:

MT-DI(10-30LPH)

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Specification

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Remark

    MT-DI series

    10-30L/H

    7-10 working days after payment

    1 year

    T/T 100% in advance





    Product feature

    ➣ Built-in filter, with 10 micron 316L stainless steel precision filter screen to remove fine impurities instead of PP cotton filter; manual drain valve, automatic cleaning at any time, soft scraping design for more thorough drainage, transparent shell make filtration effect visual.
    ➣ The long-acting KDF device adopts the original imported filter material . It removes residual chlorine, heavy metals, and inhibits the growth of fungi at the front of water purification. It has a long service life, better protects the post-purification system, and extends lifetime of deionized-purification column
    ➣ Built-in pressure tank which has inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.
    ➣ ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, door is open at the side
    ➣ Type U Korean quick-insert filters, used imported filtering materials.
    ➣ Backlight LCD display,dual waterway online monitoring, which can simultaneously display RO conductivity value,DI resistance value and equipment operating status indication.
    ➣ Menu-type operation, parameters can be set and modified, operating status display and indication light indicate to promptly reflect machine operating status such as high-pressure shutdown, low-pressure alarm, water full shutdown, etc.
    ➣ Alarming for water quality exceeding, automatic filters replacement reminding, water intake time can be set. Take water by touched key, Automatic indication light indicate RO and DI water intake.
    ➣ Equipped with a portable test pen, which can test TDS content, conductance and water temperature anytime, anywhere
    ➣ The pipeline adopts a quick-plug interface, the pipe joint passes NSF certification.



    Process

    Parameter

    MT-DI series deionized water machine

    production

    10/20/30 liter per hour

    The water requirements

    Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃,TDS<200ppm

    RO water parameter

    Ion rejection rate

    97%-99% (when using a new RO film)

    Organic matter rejection rate

    >99% when MW>200 Dalton

    Particle and bacterial rejection

    > 99%

    DI water parameter

    Resistivity (25℃)

    10 to 16 m Ω. Cm @ 25 ℃

    Conductivity

    < 0.1 us/cm

    Heavy metal ion

    < 0.01 ppb

    Electrical requirements

    100V/60Hz, 48-72W

    The system configuration

    Host machine (including 1 set of purification column)+pressure water storage tank +TDS pen + accessory bag

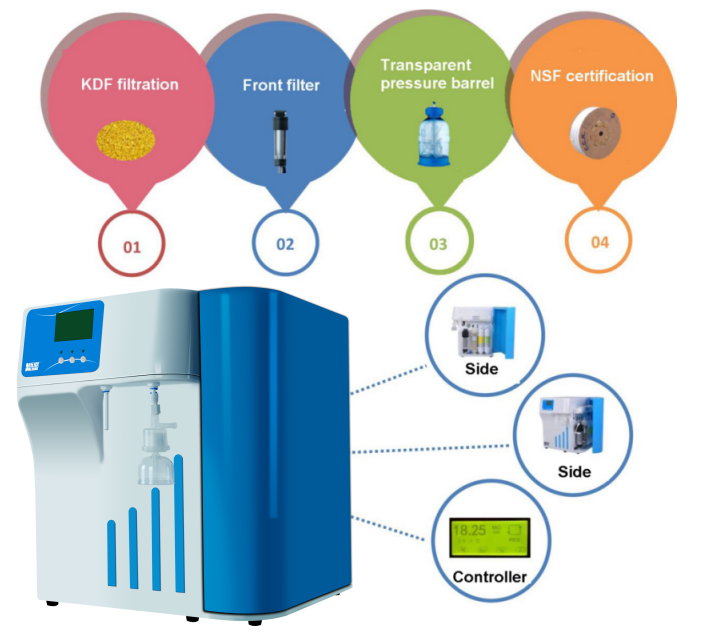

    Machine Picture

    Filter function

    Front filter

    10 micron 316 stainless steel washable filter, remove minor impurities,extend PP cotton lifetime.

    KDF filter

    Remove residual chlorine,heavy metals, retrain fungi breed, lifetime is very long, can protect post-positive filters.

    PP cotton filter

    remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

    Granular activated carbon filter

    remove color, odor, residual chlorine and heavy metals

    Reverse osmosis membrane

    filter out <1nm pollutants, ions, particles

    Deionized-purification column

    ion exchange resin bed, H+ and OH- ion removal

    0.2μm terminal filter

    final removal for < 0.2μm bacteria



    Machine SKU

    SKU

    Specification

    MT-DI-10

    10L/H, Standard type, RO pure water, DI deionized water

    MT-DI-20

    20L/H, Standard type, RO pure water, DI deionized water

    MT-DI-30

    30L/H, Standard type, RO pure water,DI deionized water
