LD-DI-MICRO(10-30LPH)

  • Commodity name： LD-DI-MICRO(10-30LPH)

Category:

LD-DI-MICRO(10-30LPH)

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Specification

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Configuration

    LD-DI-MICRO series

    10L/H

    20L/H

    30L/H

    7-10 working days after payment

    1 year


    T/T 100% in advance





    Product Features

    ➣ Applicable to various water quality, the case is with powder coating.
    ➣ The filter element adopts open mold injection technology and inside the machine
    ➣ Korean quick-insert filter column is easy to replace and maintain.
    ➣ The electrical appliance and waterways are completely separated to avoid circuit failure caused by moisture and water leakage.
    ➣ Online water quality monitoring system, immediately measure the output water quality.
    ➣ Automatic RO membrane anti-scaling flushing program, automatic stop when tap water break, automatic water breaking when machine stop, storage tank automatically fill water, automatic stopping when water is full.
    ➣ NSF certified pipeline has function of upgrading water quality and quantity.
    ➣ Equipped with a portable TDS pen, you can test TDS content, conductance, water temperature anytime, anywhere.
    ➣ Double electric water intakes, two kinds water quality, ready to use. Pressure online monitoring.
    ➣ Open door at front and back, this make filters replacement easy&convenient, the replacement can be easily completed without using any tools. Double water intakes: pure water and deionized water

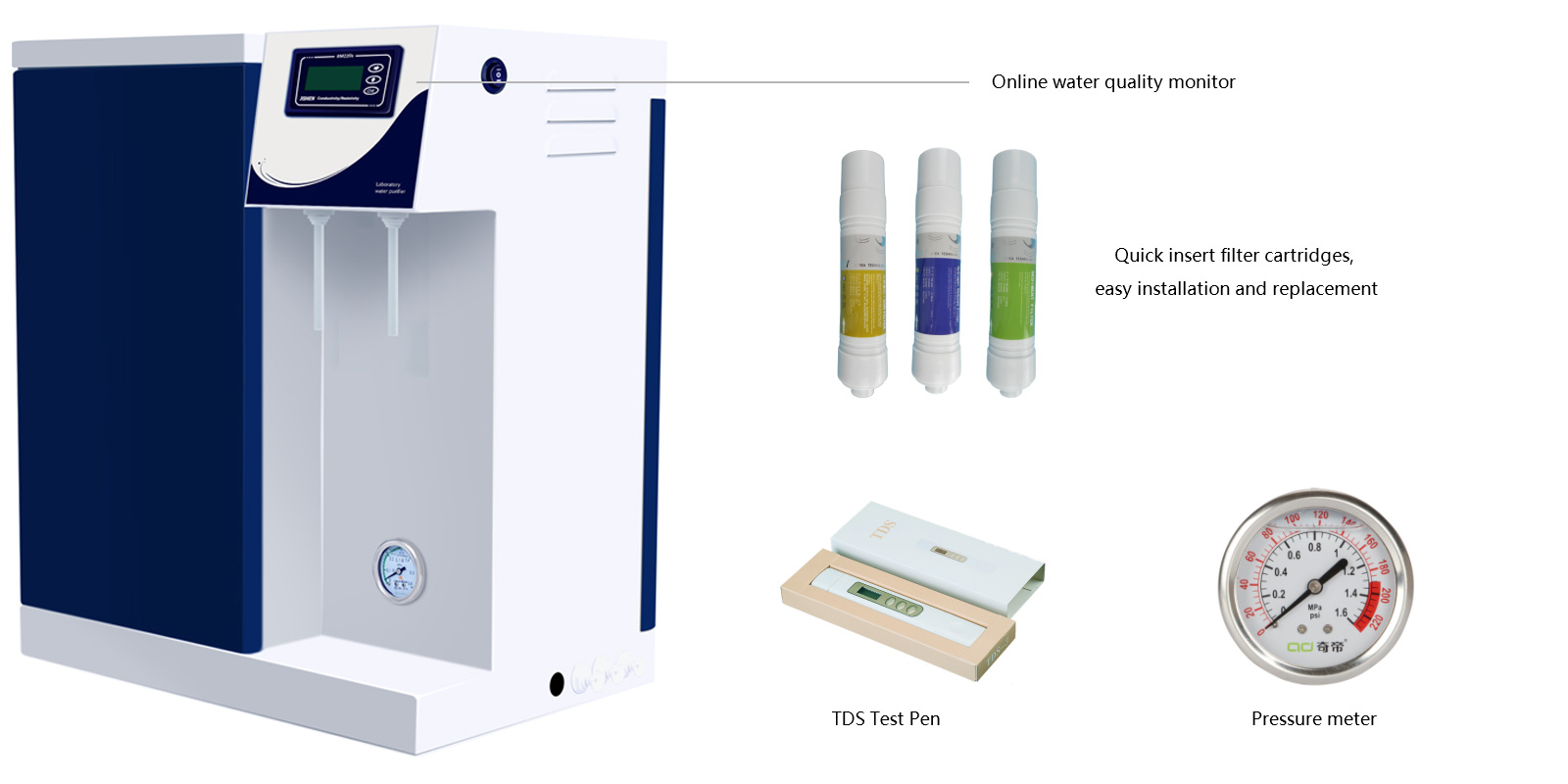

    Product Image

    Parameter

    Water rate

    10/20/30 liter per hour

    Production speed

    1.5-2 L/min（with pressure barrel）

    The water requirements

    Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃,TDS<200ppm

    RO water Parameter

    Ion rejection rate

    97%-99% (when using a new RO membrane)

    Organic matter rejection rate

    >99% when MW>200 Dalton

    Particle and bacterial rejection

    > 99%

    Application

    Clean glassware

    DI water Parameter(ASTM TYPE II grade water)

    Resistivity (25℃)

    10-16 M Ω. cm @ 25 ℃

    Conductivity

    <0.1 μS/cm

    Application

    Preposition unit of ultra pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical&biochemical regent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt spray test chamber.

    Electrical requirements

    110-240V/50-60Hz, 48-72W

    The system configuration

    Host machine (including 1 set of purification column) +TDS pen + accessory bag



    Process

    Filter consumables list

    Product name


    Function

    Replace cycle

    11" PP filter

    remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

    About 4-6 month

    11" activated carbon filter

    remove color, odor, residual chlorine and heavy metals

    About 4-6 month

    Reverse osmosis membrane

    filter out <1nm pollutants, ions, particles

    About 1-2 years

    Deionized-purification column

    ion exchange resin bed, H+ and OH- ion removal

    About 1000 liter/pc

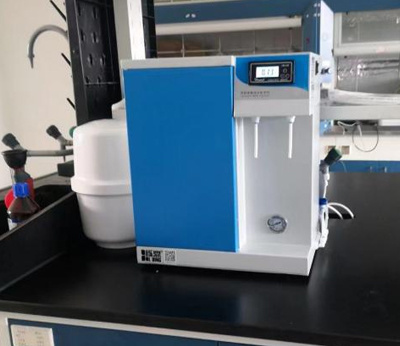

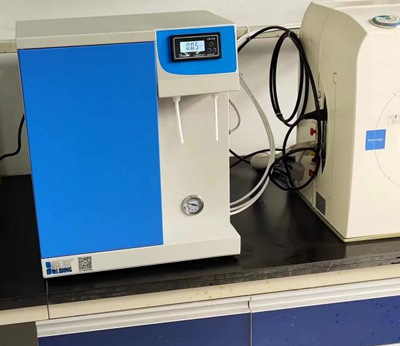

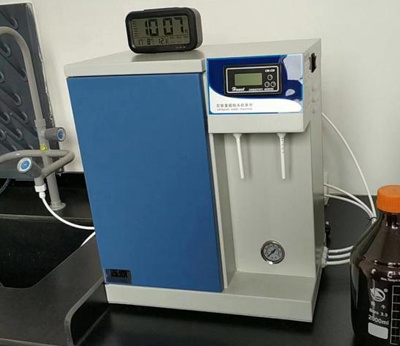

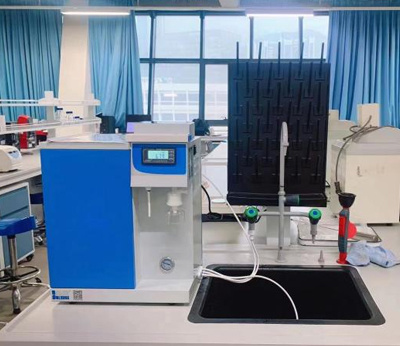

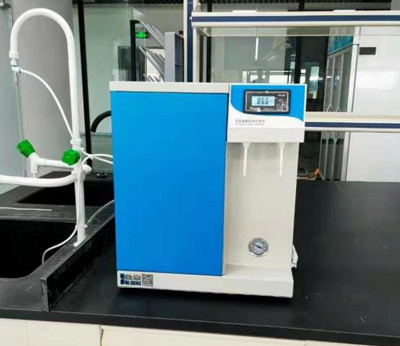

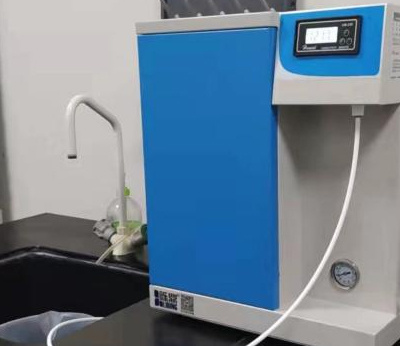

    User cases



    Machine SKU

    SKU

    Specification

    LD-DI-MICRO-10

    10L/H, Standard type, RO pure water, DI deionized water

    LD-DI-MICRO-20

    20L/H, Standard type, RO pure water, DI deionized water

    LD-DI-MICRO-30

    30L/H, Standard type, RO pure water,DI deionized water
