LD-DI-SML(10-30LPH)

  • Commodity name： LD-DI-SML(10-30LPH)

Category:

LD-DI-SML(10-30LPH)

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Specification

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Configuration

    LD-DI-SML series

    10L/H

    20L/H

    30L/H

    7-10 working days after payment

    1 year

    T/T 100% in advance





    Product Features

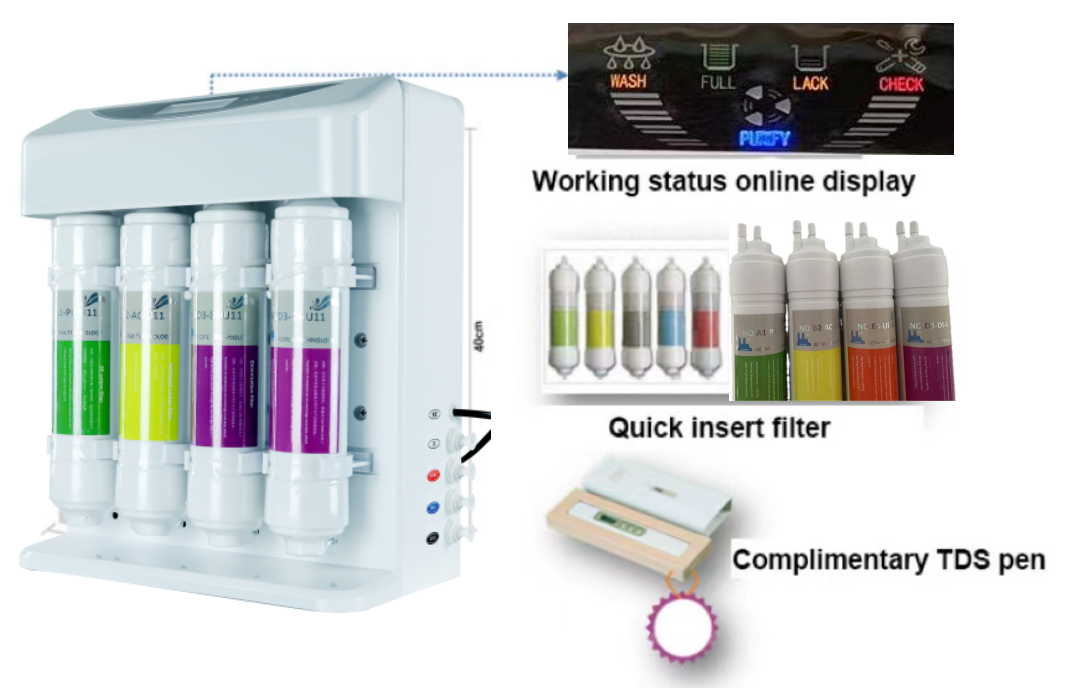

    1.Korean appearance, exquisite and slim, small size, can be inside lab cabinet.
    2.Quick-insert filters make replacement easy and convenient.
    3.Design of exposed filter cartridges make consumables replaced easily.
    4.Microcomputer automatically control, backlight LED large LCD screen. 5.
    5.Visualized operating status, real-time display flushing, water making, water full&lack and maintenance status, with sound and light alarm function,
    6.Transparent window, simple&graceful, detachable panel, convenient maintenance.
    7.Newest environmentally friendly materials. With a portable test pen.



    Product Image

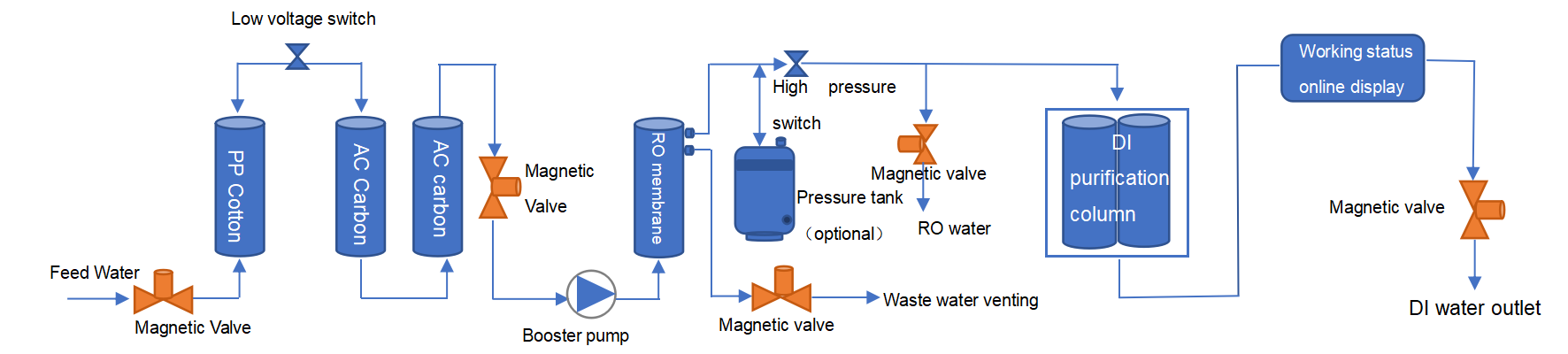

    Process

    Parameter

    Water rate

    10/20/30 liter per hour

    The water requirements

    Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃,TDS<200ppm

    RO water Parameter

    Ion rejection rate

    97%-99% (when using a new RO membrane)

    Organic matter rejection rate

    >99% when MW>200 Dalton

    Particle and bacterial rejection

    > 99%

    Application

    Clean glassware

    DI water Parameter(ASTM TYPE II grade water)

    Resistivity (25℃)

    10-16 M Ω. cm @ 25 ℃

    Conductivity

    <0.1 μS/cm

    Application

    Preposition unit of ultra pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical&biochemical regent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt spray test chamber.

    Electrical requirements

    110-240V/50-60Hz, 48-72W

    The system configuration

    Host machine (including 1 set of purification column) +TDS pen + accessory bag



    Filter consumables list

    Product name


    Function

    Replace cycle

    11" PP filter

    remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

    About 4-6 month

    11" activated carbon filter

    remove color, odor, residual chlorine and heavy metals

    About 4-6 month

    Reverse osmosis membrane

    filter out <1nm pollutants, ions, particles

    About 1-2 years

    Deionized-purification column

    ion exchange resin bed, H+ and OH- ion removal

    About 1000 liter/pc

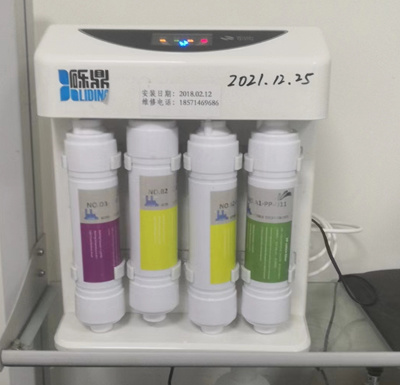

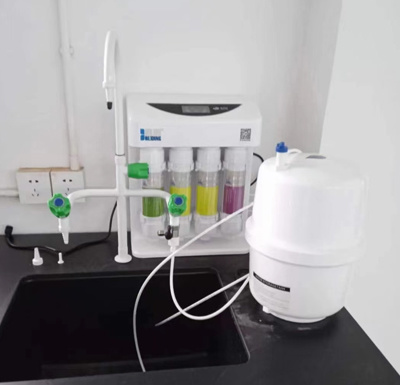

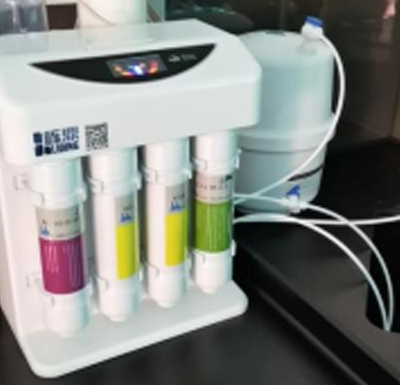

    User cases



    Machine SKU

    SKU

    Specification

    LD-DI-SML-10

    10L/H, Standard type, RO pure water, DI deionized water

    LD-DI-SML-20

    20L/H, Standard type, RO pure water, DI deionized water

    LD-DI-SML-30

    30L/H, Standard type, RO pure water,DI deionized water



    Engineered for scientific and industrial applications, our customize reverse osmosis deionized water system combines reverse osmosis and deionization technologies to produce ASTM Type II grade water with resistivity up to 16 MΩ·cm. The system features quick-insert filter cartridges and an exposed consumable design that simplifies maintenance while maintaining a compact footprint suitable for installation inside laboratory cabinets. The reliable performance of this customize reverse osmosis deionized water system makes it ideal for applications ranging from biochemical analysis and chip washing to chemical reagent preparation and photographic processing where consistent water quality is essential.

    The practical advantages of our customize reverse osmosis deionized water system include its intuitive microcomputer control with backlit LCD display that provides real-time status monitoring, audible alarms, and visual indicators for all operational phases. With production capacities of 10-30 liters per hour and 97-99% ion rejection capability, this system delivers both efficiency and purity. The combination of advanced filtration technology, user-centric design, and reliable performance makes our customize reverse osmosis deionized water system an excellent choice for facilities seeking to upgrade their water purification capabilities with a system that balances functionality with operational convenience.
