MN-S(10-30LPH)

Double password protection, user password protection, initial password factory mode password protection.

  • Commodity name： MN-S(10-30LPH)

Category:

MN-S(10-30LPH)

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Specification

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Remark



    MN-S



    10L/H

    20L/H

    30L/H

    7-10 working days after payment

    1 year

    T/T 100% in advance

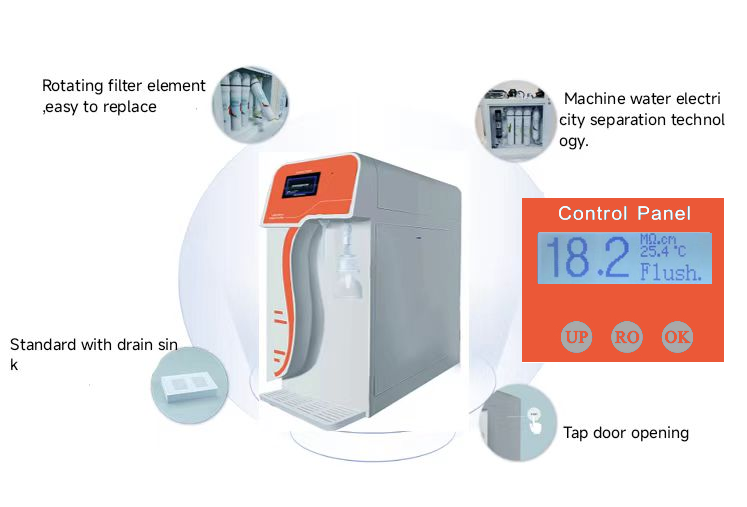

    Product feature

    ➣ Double password protection, user password protection, initial password factory mode password protection.
    ➣ The electriIt has a scheduled standby and scheduled automatic shutdown function. When the shutdown time is up, it will automatically stop all output and enter the shutdown mode.
    ➣ Complete management functions such as ultrapure water production, system water intake, and system circulation.
    ➣ Complete water-free protection, high-pressure water full protection functions and fault alarm functions.
    ➣ Ultra low radiation. Adopt advanced electromagnetic compatibility design
    ➣ Complete historical alarms, historical water records and consumable life management functions.
    ➣ The chassis adopts plastic spraying technology and has a side door design. The filtration system adopts an 11-inch Rotary quick replacement filter column for easier replacement and maintenance, and has the function of upgrading water quality and quantity.
    ➣ Backlit LCD display, online monitoring, can simultaneously display UP resistivity value and equipment operating status indication.
    ➣ Menu-style operation can modify and set multiple measurement parameters; it has multiple operating status displays and indicator light prompts, which can promptly reflect the equipment's operating status, such as high-pressure shutdown, low-pressure alarm, water-full shutdown, etc.
    ➣ RO water ultrapure water has an alarm when the water quality exceeds the standard, and automatically prompts for filter element replacement. You can set the water intake time by yourself; touch the button to get water, and the RO UP water indicator light will automatically prompt
    ➣ Equipped with a portable test pen, you can test TDS content, conductivity, and water temperature anytime and anywhere.
    ➣ Dual-wavelength UV ultraviolet germicidal lamp can effectively sterilize and reduce TOC. The original imported 5000D ultrafiltration component can effectively remove endotoxin and heat source (optional).



    Process

    Parameter

    MN-S series ultrapure water machine

    Type classification

    Standard

    Low Endotoxin

    Low TOC

    Comprehensive

    The machine model

    MN-S

    MN-S-F

    MN-S-V

    MN-S-VF

    Water making speed

    10L/H  20 L/H  30L/H

    The water requirements

    Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃

    RO water Parameter

    Ion rejection rate

    97%-99%

    Organic matter rejection rate

    >99% when MW>200 Dalton

    Particle and bacterial rejection

    > 99%

    UP water Parameter(ASTM TYPE I grade water)

    Resistivity (25℃)

    18.25 M Ω. cm @ 25 ℃

    Heavy metal ion

    < 0.01 ppb

    Total organic carbon (TOC) *

     <10 ppb

    <3 ppb

    bacteria

    < 1 cfu/ml *(with terminal filter)

    Particulate matter (> 0.1 microns)

    <1/ml

    Pyrogen (endotoxin)

    N/A

    < 0.001 Eu/ml

    N/A

    < 0.001 Eu/ml

    Ribonuclease (RNases)

    N/A

    <1pg/ml

    N/A

    <1pg/ml

    Deoxyribonucleases

    N/A

    <5pg/ml

    N/A

    <5pg/ml

    Application

    All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment

    PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute

    Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, High sensitivity ICP/MS， environmental monitoring, biochip development, trace organic matter analysis

    Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing

    Electrical requirements

    100-240V, 50/60Hz, 48-72W

    Dimensions

    312×475×475mm, about 30Kg

    The system configuration

    Host machine (including 1 set of purification columns) + 12L external pressure storage tank + TDS pen + accessory bag



    Screen function introduction

    Screen image

    Button name

    function



    RO

    Take RO water and switch to RO water quality monitoring interface

    UP

    Get UP water and switch to UP water quality monitoring interface

    OK



    Confirm the modified parameters and close the alarm event pop-up menu



    Filter function

    Filter element


    Function

    Replace cycle

    PP cotton filter

    remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

    About 4-6 month

    Activated carbon filter

    remove color, odor, residual chlorine and heavy metals

    About 4-6 month

    Reverse osmosis membrane

    filter out <1nm pollutants, ions, particles

    About 1-2 years

    Ultra-purification column

    ion exchange resin bed, H+ and OH- ion removal

    About 1000 liter

    Dual wavelength UV lamp

    sterilization device, decomposition and photo oxidation OC, lower TOC  (*-V,-VF)

    About 9000 hours

    0.2μm terminal filter

    final removal for < 0.2μm bacteria

    About 2-3 years

    Ultra filtration membrane

    remove pyrogen,RNase, DNase(*-F,-VF)

    /



    Machine SKU

    SKU

    Specification

    MN-S-10

    10L/H, Standard type, RO pure water, UP ultra-pure water

    MN-S-V-10

    10L/H, Low TOC type, RO pure water, UP ultra-pure water

    MN-S-F-10

    10L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    MN-S-VF-10

    10L/H, Comprehensive type, RO pure water, UP ultra-pure water

    SKU

    Specification

    MN-S-20

    20L/H, Standard type, RO pure water, UP ultra-pure water

    MN-S-V-20

    20L/H, Low TOC type, RO pure water, UP ultra-pure water

    MN-S-F-20

    20L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    MN-S-VF-20

    20L/H, Comprehensive type, RO pure water, UP ultra-pure water

    SKU

    Specification

    MN-S-30

    30L/H, Standard type, RO pure water, UP ultra-pure water

    MN-S-V-30

    30L/H, Low TOC type, RO pure water, UP ultra-pure water

    MN-S-F-30

    30L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    MN-S-VF-30

    30L/H, Comprehensive type, RO pure water, UP ultra-pure water
