MN-L(10-30LPH)

Suitable for water quality in the whole country, the chassis adopts spray plastic process

  • Commodity name： MN-L(10-30LPH)

Category:

MN-L(10-30LPH)

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Specification

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Remark



    MN-L



    10L/H

    20L/H

    30L/H

    7-10 working days after payment

    1 year

    T/T 100% in advance





    Product feature

    ➣ Suitable for water quality in the whole country, the chassis adopts spray plastic process
    ➣ System filter element adopts open mold injection technology and built-in chassis
    ➣ Korean quick-connect filter column is easy to replace and maintain.
    ➣ The electrical and waterways are completely separated to avoid circuit failure caused by moisture and water leakage.
    ➣ Water quality online monitoring system to instantly measure the water quality of the produced water;
    ➣ Automatic RO membrane anti-scaling flushing program, automatic shutdown of tap water, automatic water cut off, automatic water supply in the storage bucket, automatic shutdown of the water storage tank.
    ➣ The pipelines are all NSF certified and have water quality and water upgrade functions.
    ➣ Equipped with a portable TDS pen, you can test TDS content, conductance, water temperature anytime, anywhere.
    ➣ Colored touched screen, humanized operation interface make users completely monitor controller’s working status and real-time data.
    ➣ ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, self-priming door.
    ➣ Open the door design before and after, it is quick and easy to replace the filter element, and the filter replacement can be easily completed without using any tools.
    ➣ Inbuilt feed water pressure test gauge to real time monitor tap water pressure and filters blocking.
    ➣ Lifetime of PP cotton, activated carbon filter, RO membrane and ultra purification columns can be set to display the elapsed&rest time of consumables. Automatic reminder for filter replacement to avoid water quality decreasing.
    ➣ Perfect managing functions of RO&UP water making, circulation system and sterilization.
    ➣ Feed water, RO and UP water three ways water quality sensor and five ways switches signal are accessed integrated, with functions of timing quantitative water taking.
    ➣ Equipped with USB Host interface, it supports data export function of historical alarm record and historical water intake record.
    ➣ Low-voltage 24VDC is used as the main power supply, which meets the safety regulations and meets the requirements of humid environment, and will not cause personal injury.
    ➣ Can be with inner circulation system to ensure water quality keep at the highest level. ( optional)

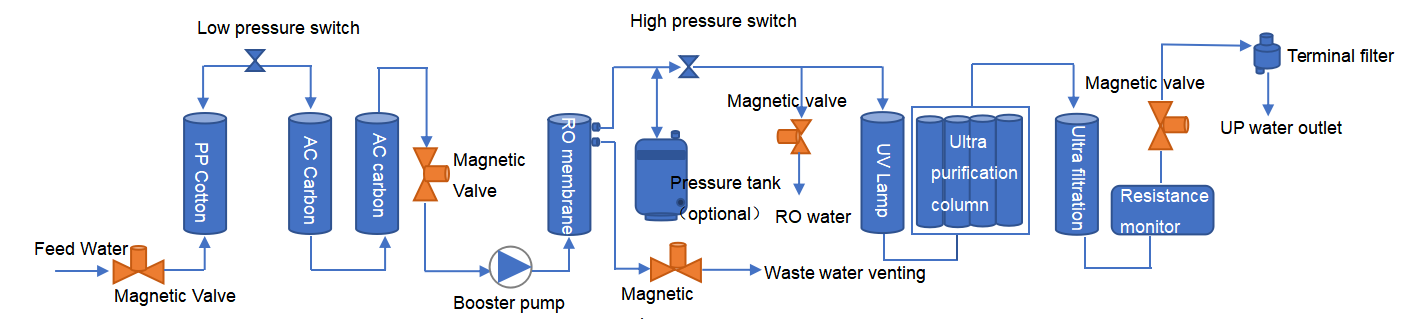

    Process

    Parameter

    MN-L series ultrapure water machine

    Type classification

    Standard

    Low Endotoxin

    Low TOC

    Comprehensive

    The machine model

    MN-L

    MN-L-F

    MN-L-V

    MN-L-VF

    Water making speed

    10L/H  20 L/H  30L/H

    The water requirements

    Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃

    RO water Parameter

    Ion rejection rate

    97%-99%

    Organic matter rejection rate

    >99% when MW>200 Dalton

    Particle and bacterial rejection

    > 99%

    Application

    Front system of ultra-pure water machine, buffer configuration, photosensitive film washing, water supply for stability experiment box, meteorological experiment equipment, hydrogen generator, battery adding liquid, electroplating and other instruments

    UP water Parameter(ASTM TYPE I grade water)

    Resistivity (25℃)

    18.25 M Ω. cm @ 25 ℃

    Heavy metal ion

    < 0.01 ppb

    Total organic carbon (TOC) *

     <10 ppb

    <3 ppb

    bacteria

    < 1 cfu/ml *(with terminal filter)

    Particulate matter (> 0.1 microns)

    <1/ml

    Pyrogen (endotoxin)

    N/A

    < 0.001 Eu/ml

    N/A

    < 0.001 Eu/ml

    Ribonuclease (RNases)

    N/A

    <1pg/ml

    N/A

    <1pg/ml

    Deoxyribonucleases

    N/A

    <5pg/ml

    N/A

    <5pg/ml

    Application

    All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment

    PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute

    Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, High sensitivity ICP/MS， environmental monitoring, biochip development, trace organic matter analysis

    Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing

    Electrical requirements

    100-240V, 50/60Hz, 48-72W

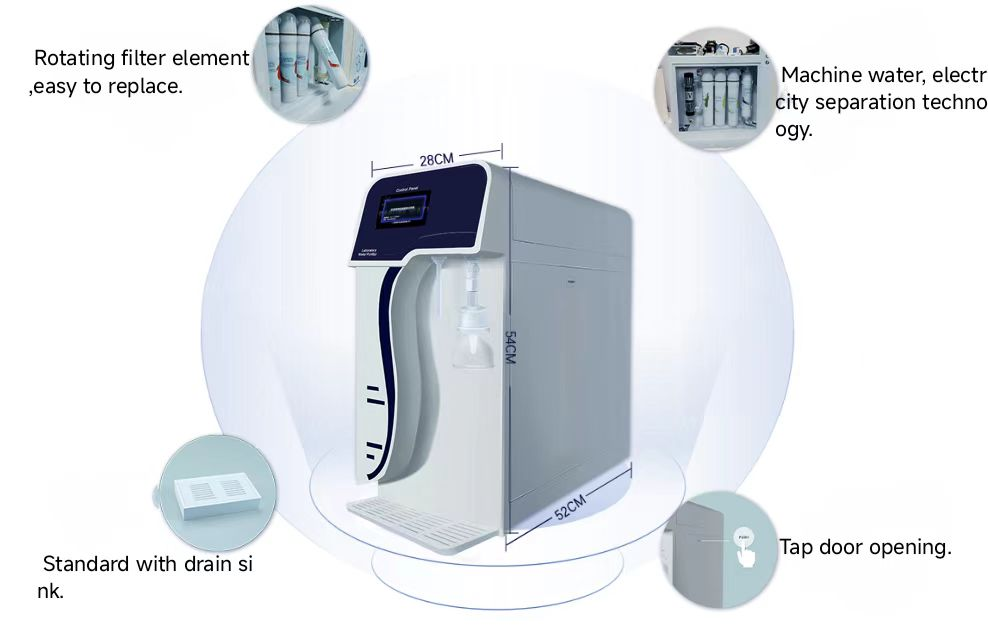

    Dimensions

    312×475×475mm, about 30Kg

    The system configuration

    Main machine (including 1 set of purification column)+12 L external pressure water storage tank +TDS pen + accessory kit

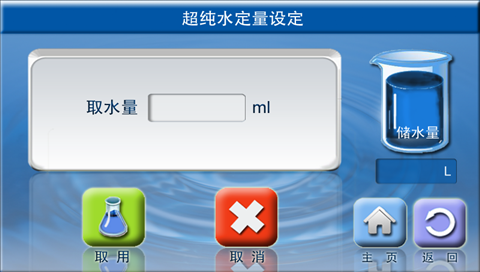

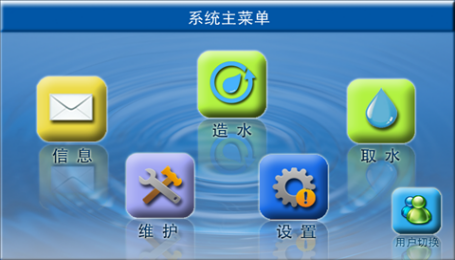

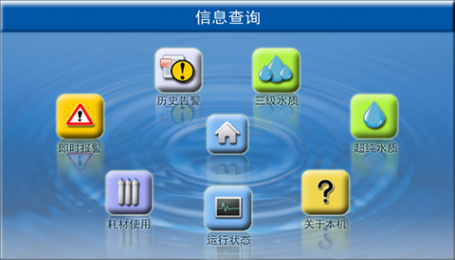

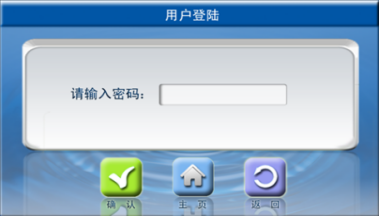

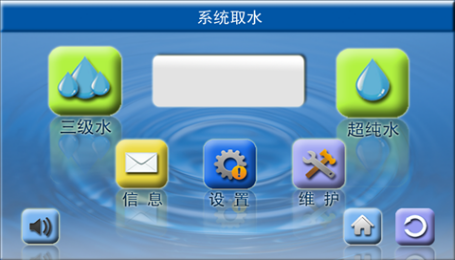

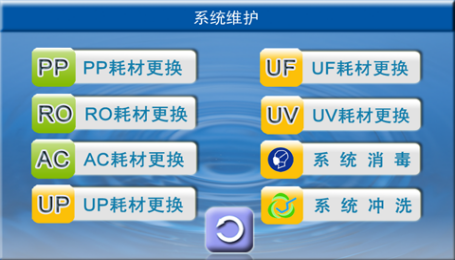

    Screen function



    Filter function

    Filter element


    Function

    Replace cycle

    PP cotton filter

    remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

    About 4-6 month

    Activated carbon filter

    remove color, odor, residual chlorine and heavy metals

    About 4-6 month

    Reverse osmosis membrane

    filter out <1nm pollutants, ions, particles

    About 1-2 years

    Ultra-purification column

    ion exchange resin bed, H+ and OH- ion removal

    About 1000 liter

    Dual wavelength UV lamp

    sterilization device, decomposition and photo oxidation OC, lower TOC  (*-V,-VF)

    About 9000 hours

    0.2μm terminal filter

    final removal for < 0.2μm bacteria

    About 2-3 years

    Ultra filtration membrane

    remove pyrogen,RNase, DNase(*-F,-VF)

    /



    Machine SKU

    SKU

    Specification

    MN-L-10

    10L/H, Standard type, RO pure water, UP ultra-pure water

    MN-L-V-10

    10L/H, Low TOC type, RO pure water, UP ultra-pure water

    MN-L-F-10

    10L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    MN-L-VF-10

    10L/H, Comprehensive type, RO pure water, UP ultra-pure water

    SKU

    Specification

    MN-L-20

    20L/H, Standard type, RO pure water, UP ultra-pure water

    MN-L-V-20

    20L/H, Low TOC type, RO pure water, UP ultra-pure water

    MN-L-F-20

    20L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    MN-L-VF-20

    20L/H, Comprehensive type, RO pure water, UP ultra-pure water

    SKU

    Specification

    MN-L-30

    30L/H, Standard type, RO pure water, UP ultra-pure water

    MN-L-V-30

    30L/H, Low TOC type, RO pure water, UP ultra-pure water

    MN-L-F-30

    30L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    MN-L-VF-30

    30L/H, Comprehensive type, RO pure water, UP ultra-pure water
