PRO-E-UP(45-120LPH)

RO pure water: desalination rate as high as 95-99% , Conductivity ≤10μS/cm
Ultrapure water:
resistivity 18.25MΩ.cm@25°C,
TOC: <3 ppb,
particles (>0.22 um) <1/ml,
microorganism <1 cfu/m,
pyrogen<0.001EU/ml,
RNases≤0.01ng/ml,
DNases≤3Pg/ml/ul

  • Commodity name： PRO-E-UP(45-120LPH)

Category:

PRO-E-UP(45-120LPH)

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Specification

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Remark

    PRO-E-UP series

    45L/H

    60L/H

    90L/H

    120L/H

    7-10 working days after payment

    1 year

    T/T 100% in advance





    Product feature

    ➣ Full-automatic microcomputer control display monitors power supply, water shortage, water production, water full, flush, and strong flush control in real time.
    ➣ Fully automatic RO membrane anti-fouling washing program and regular washing program to prolong the service life of RO membrane.
    ➣ Real-time online water flow monitoring, water pressure monitoring, water production monitoring, and water pressure monitoring.
    ➣ On-line resistivity monitoring of water quality, on-line detection of multiple working states, and real-time operation data.
    ➣ The main components are imported brands to ensure excellent water quality and a variety of different configurations to meet your experimental needs.
    ➣ Floor-standing design, with movable and fixed feet at the bottom, making installation and movement more convenient.
    ➣ The front of the machine is equipped with an independent water intake end, which is convenient and quick.
    ➣ Double electric water intake: RO water, ultra-pure water, two kinds of water outlets.
    ➣ Multiple safety protection, exquisite chassis and beautiful appearance.
    ➣ Free portable TDS water quality testing pen.
    ➣ Configure ultra-large capacity purification tank.

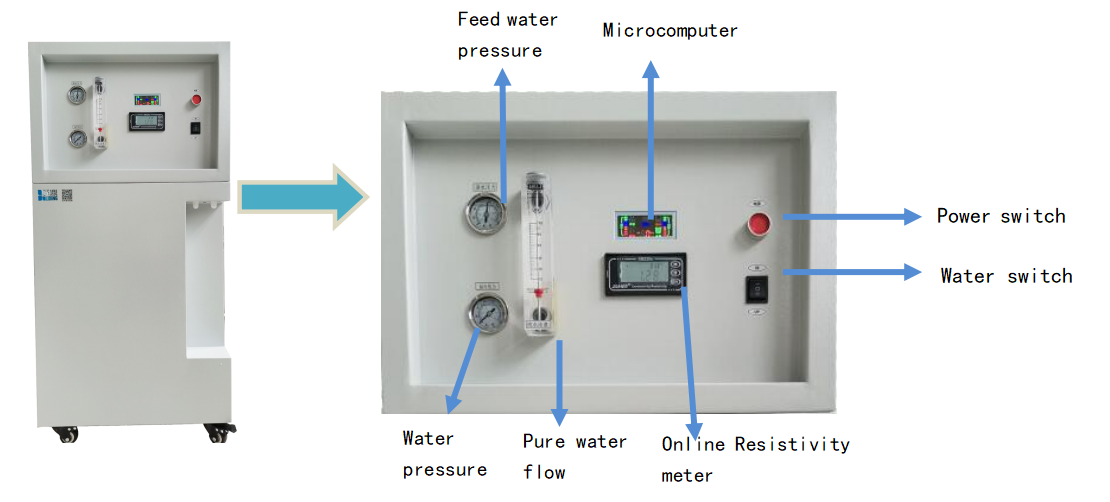

    Control panel description

    Parameter

    PRO-E-UP series ultrapure water machine

    Type classification

    Standard

    Low Endotoxin

    Low TOC

    Comprehensive

    The machine model

    PRO-E-UP

    PRO-E-UP-F

    PRO-E-UP-V

    PRO-E-UP-VF

    Water rate

    45/60/90/120 lph

    The water requirements

    Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃

    RO water Parameter

    Ion rejection rate

    97%-99% (when using a new RO membrane)

    Organic matter rejection rate

    >99% when MW>200 Dalton

    Particle and bacterial rejection

    > 99%

    UP water Parameter(ASTM TYPE I grade water)

    Resistivity (25℃)

    18.25 M Ω. Cm @ 25 ℃

    Heavy metal ion

    < 0.01 ppb

    Total organic carbon (TOC) *

    <10 ppb

    <3 ppb

    bacteria

    < 1 cfu/ml *(with terminal filter)

    Particulate matter (> 0.1 microns)

    <1/ml

    Pyrogen (endotoxin)

    N/A

    < 0.001 Eu/ml

    N/A

    < 0.001 Eu/ml

    Ribonuclease (RNases)

    N/A

    <1pg/ml

    N/A

    <1pg/ml

    Deoxyribonucleases

    N/A

    <5pg/ml

    N/A

    <5pg/ml

    Application

    All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment

    High sensitivity ICP/MS, PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute

    Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, environmental monitoring, biochip development, trace organic matter analysis

    Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing

    Electrical requirements

    100-240V, 50/60Hz, 48-72W

    The system configuration

    Host machine (including 1 set of purification column)+40/60 L pressure water storage tank +TDS pen + accessory bag

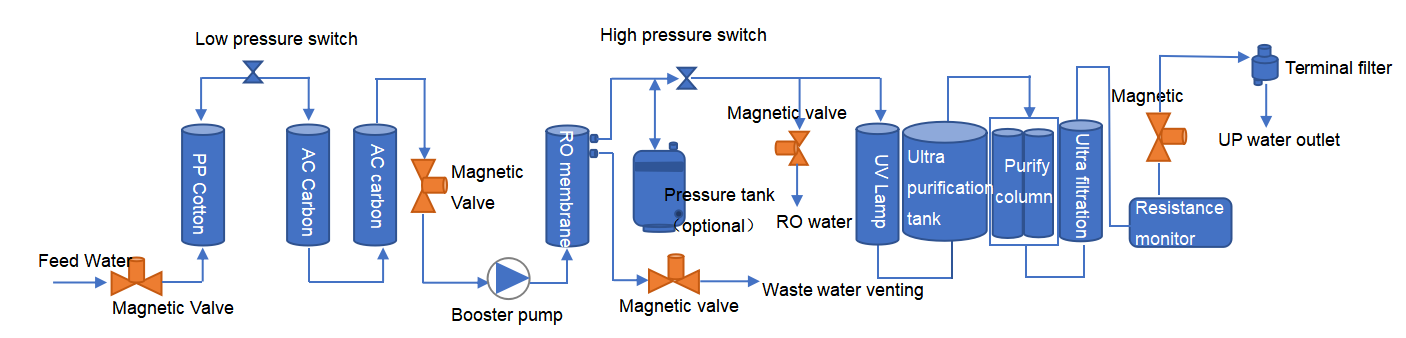

    Process(*PRO-E-UP-VF configuration)

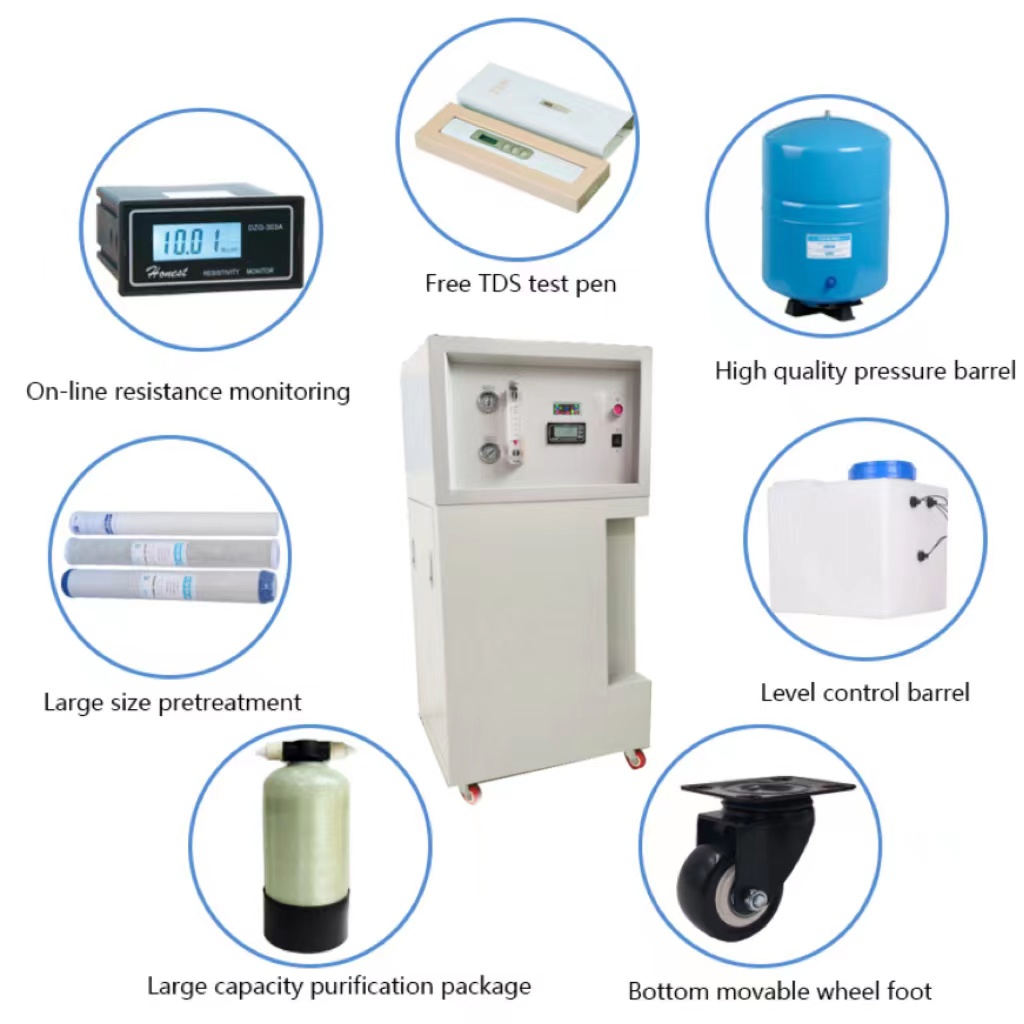

    Accessories

    Filter consumables list

    Product name


    Function

    Replace cycle

    20'' 5 μm PP cotton

    remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

    About 4-6 month

    20'' Refined activated carbon

    remove color, odor, residual chlorine and heavy metals

    About 4-6 month

    Reverse osmosis membrane

    filter out <1nm pollutants, ions, particles

    About 1-2 years

    Dual wavelength (185 & 254 nm) UV lamp (import)

    sterilization device, decomposition and photo oxidation OC, lower TOC  (*-V,-VF)

    About 9000 hours

    12L ultra purified tank

    ion exchange resin bed, H+ and OH- ion removal

    About 25 tons

    11'' ultra purification column

    Imported 5000 Dalton UF heat source column

    remove pyrogen,RNase, DNase(*-F,-VF)

    About 2-3 years

    0.2μm terminal filter

    final removal for < 0.2μm bacteria

    About 2-3 years

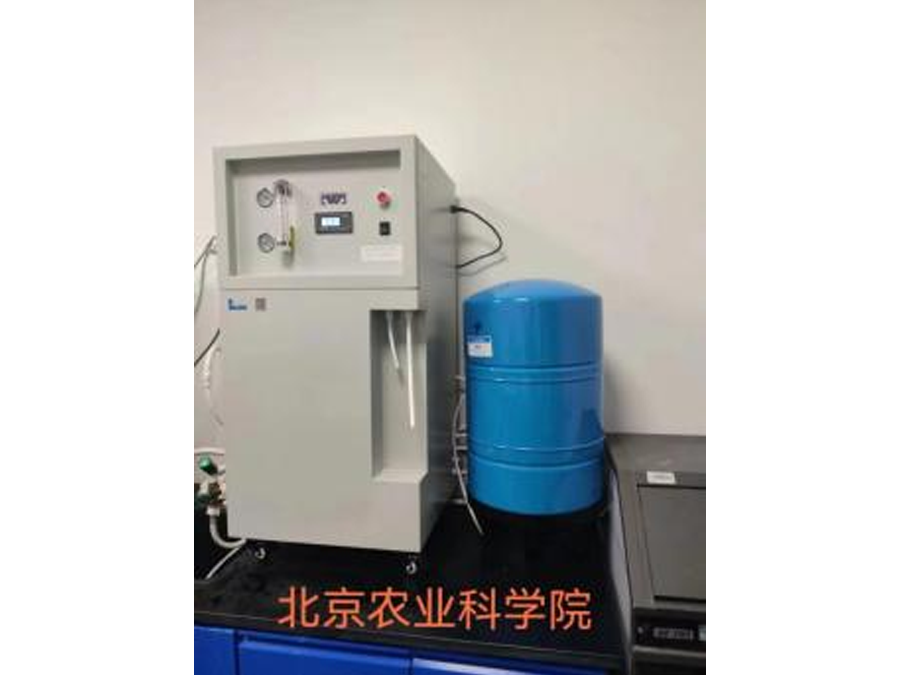

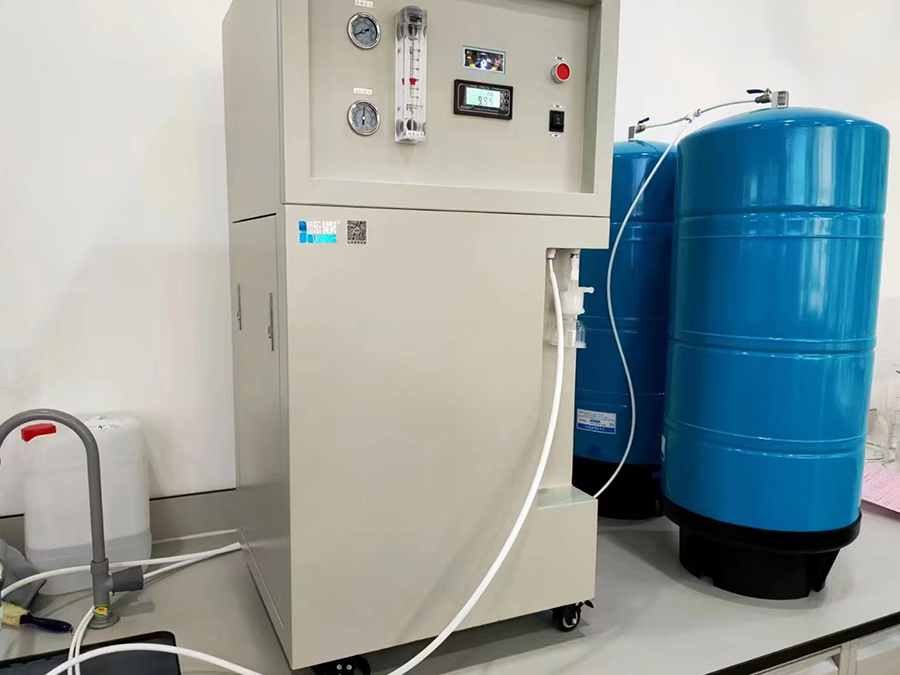

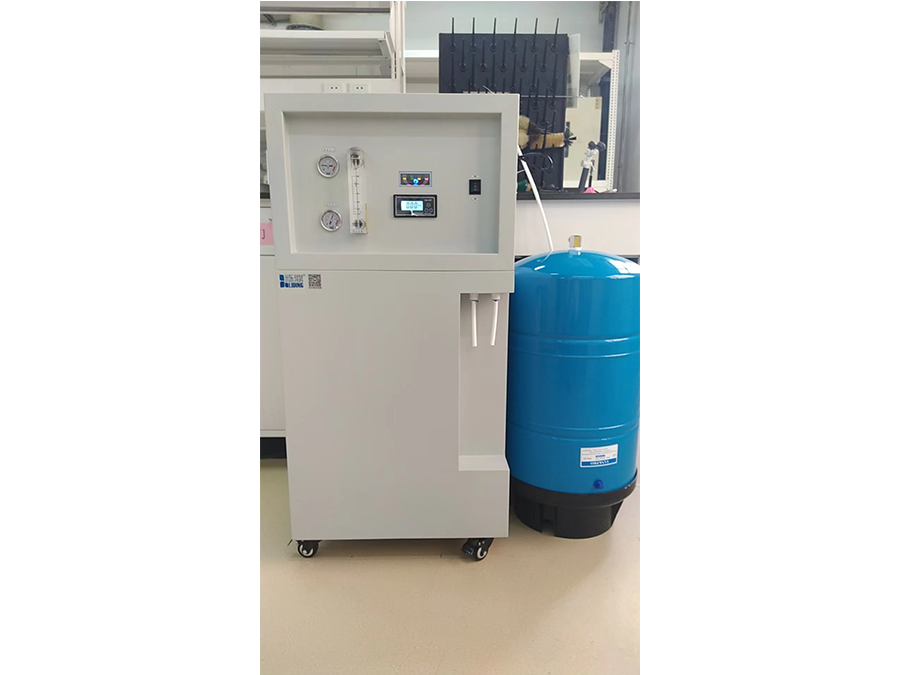

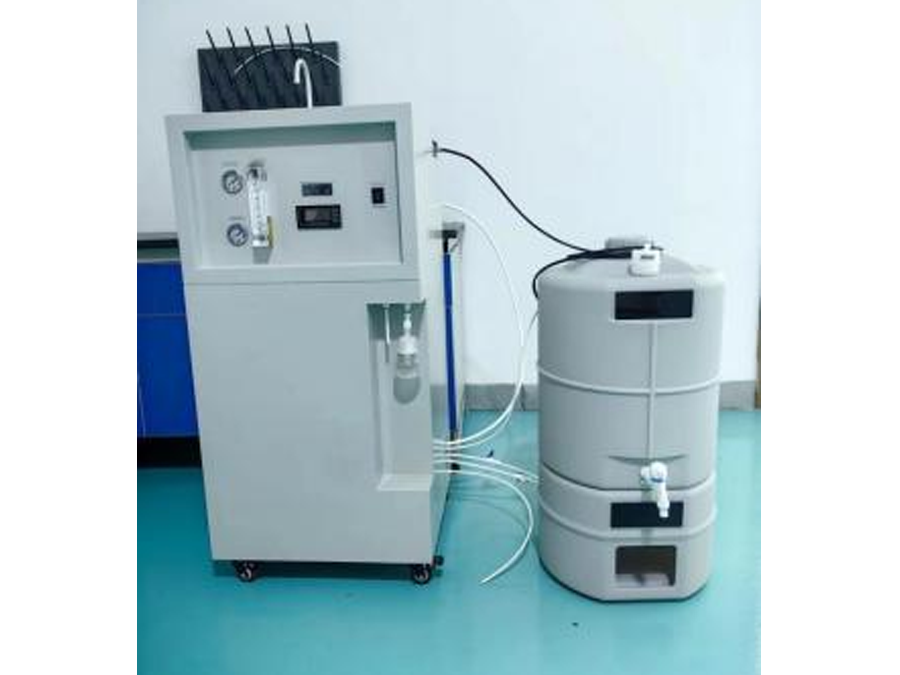

    User cases



    Machine SKU

    SKU

    Specification

    PRO-E-UP-45

    45L/H, Standard type, RO pure water, UP ultra-pure water

    PRO-E-UP-60

    60L/H, Standard type, RO pure water, UP ultra-pure water

    PRO-E-UP-90

    90L/H, Standard type, RO pure water, UP ultra-pure water

    PRO-E-UP-120

    120L/H, Standard type, RO pure water, UP ultra-pure water

    PRO-E-UP-V-45

    45L/H, Low TOC type, RO pure water, UP ultra-pure water

    PRO-E-UP-V-60

    60L/H, Low TOC type, RO pure water, UP ultra-pure water

    PRO-E-UP-V-90

    90L/H, Low TOC type, RO pure water, UP ultra-pure water

    PRO-E-UP-V-120

    120L/H, Low TOC type, RO pure water, UP ultra-pure water

    PRO-E-UP-F-45

    45L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    PRO-E-UP-F-60

    60L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    PRO-E-UP-F-90

    90L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    PRO-E-UP-F-120

    120L/H, Low Endotoxin type, RO pure water, UP ultra-pure water

    PRO-E-UP-VF-45

    45L/H, Comprehensive type, RO pure water, UP ultra-pure water

    PRO-E-UP-VF-60

    60L/H, Comprehensive type, RO pure water, UP ultra-pure water

    PRO-E-UP-VF-90

    90L/H,Comprehensive type, RO pure water, UP ultra-pure water

    PRO-E-UP-VF-120

    120L/H,Comprehensive type, RO pure water, UP ultra-pure water
