PRO-M-R-RO

  • Commodity name： PRO-M-R-RO

Category:

PRO-M-R-RO

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Specification

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Remark

    PROM-R-RO series

    10L/H

    15L/H

    30L/H

    60L/H

    90L/H

    7-10 working days after payment

    1 year


    T/T 100% in advance





    Product feature

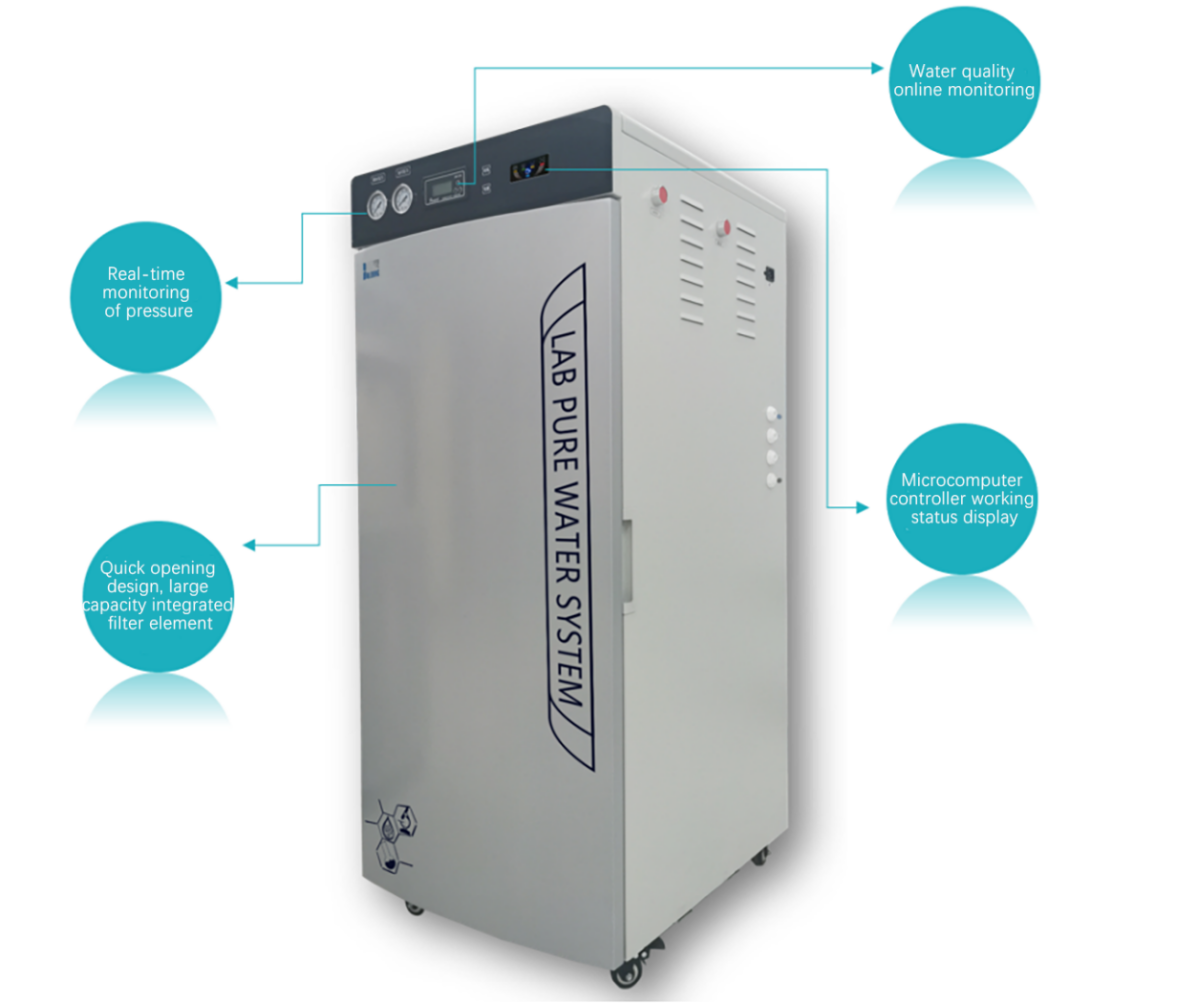

    ➣ Automatic microcomputer control display for real-time monitoring of power supply, water shortage, water production, water full, washing, and strong washing control.
    ➣ Automatic RO film scale prevention washing procedure, as well as regular washing program, to extend the service life of RO film.
    ➣ Real-time online water production and water quantity monitoring, water inlet pressure monitoring, water production pressure monitoring.
    ➣ A variety of working status online detection, real-time running data grasp.
    ➣ The main components use imported brands to ensure excellent water quality, and a variety of different configurations to meet your experimental needs.
    ➣ Floor type design, the bottom is equipped with activity, fixed feet, installation, movement is more convenient.
    ➣ Multiple safety protection, exquisite chassis, beautiful appearance.
    ➣ Give you a convenient TDS water quality testing pen.
    ➣ Internal circulation system is adopted
    ➣ Equipped with sterilization tank
    ➣ Equipped with high power 316 stainless steel double wavelength ultraviolet sterilization lamp



    Parameter

    Water rate

    10/15/30/60/90 liter per hour

    Production speed

    1.5-2 L/min（with pressure barrel）

    The water requirements

    Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃,TDS<400ppm

    RO water Parameter(ASTM TYPE III grade water)

    Conductivity

    1-5 us/cm

    Particle and bacterial rejection

    > 99%

    Total organic carbon (TOC) *

    <30 ppb

    Sterile water index

    bacteria <10 CFU/ml

    Electrical requirements

    110-240V，50/60Hz; 120W

    The system configuration

    Host machine (including 1 set of purification column)+60 L water storage tank +TDS pen + accessory bag



    Filter function

    20’’ 5 μm PP cotton

    remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

    20’’ Refined activated carbon

    remove color, odor, residual chlorine and heavy metals

    Reverse osmosis membrane

    filter out <1nm pollutants, ions, particles

    Dual wavelength  UV lamp

    sterilization device, decomposition and photo oxidation OC, lower TOC  (*-V,-VF)

    0.2μm terminal filter

    final removal for < 0.2μm bacteria



    Process
