LD-R-RO

  • Commodity name： LD-R-RO

Category:

LD-R-RO

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Information

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Remark

    LD-R-RO-10

    10L/H

    7-10 working days after payment

    1 year

    T/T 100% in advance





    Product feature

    ➣ Applicable to various water quality, the case is with powder coating.
    ➣ The filter element adopts open mold injection technology and inside the machine
    ➣ Korean quick-insert filter column is easy to replace and maintain.
    ➣ The electrical appliance and waterways are completely separated to avoid circuit failure caused by moisture and water leakage.
    ➣ Online water quality monitoring system, immediately measure the output water quality.
    ➣ Automatic RO membrane anti-scaling flushing program, automatic stop when tap water break, automatic water breaking when machine stop, storage tank automatically fill water, automatic stopping when water is full.
    ➣ NSF certified pipeline has function of upgrading water quality and quantity.
    ➣ Equipped with a portable TDS pen, you can test TDS content, conductance, water temperature anytime, anywhere.
    ➣ Double electric water intakes, two kinds water quality, ready to use. Pressure online monitoring.
    ➣ Open door at front and back, this make filters replacement easy&convenient, the replacement can be easily completed without using any tools. Double water intakes: pure water and deionized water



    Application

    Ultra pure water machine preconditioning system, buffer configuration, photographic film development, stability test box, weather experimental equipment, hydrogen generator, battery liquid, electroplating and other instruments water supply



    Product parameter

    Feed water request

    tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C

    Capacity

    10L/H

    Flow rate

    1.5-2L/min ( with pressure barrel)

    Output water

    quality

    Desalination rate: more than 99%

    Conductivity: <5us/cm TDS(RO water) : <10ppm*

    Chloride: < 250 ppm；Arsenic : < 10 ppb；Iron :  <0.3 ppm

    1 outlet: two-stage RO water

    Power supply

    220V/50Hz； 48W

    Dimension（mm）

    L* W* H: 41*27*50cm

    Standard configuration：

    Machine (including 1 set of consumable filters) +70L pressure tank + accessory package

    Remarks:*The value will be influenced by temperature and feed water’s quality

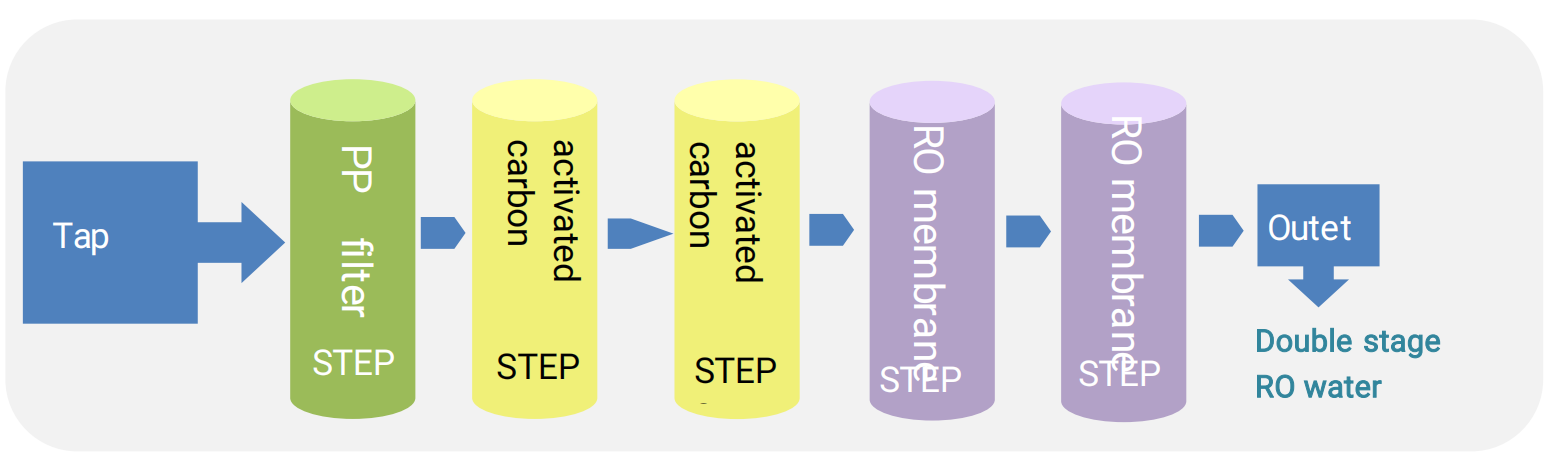

    Process

    Filter function

    ➣ First stage: PP cotton (PPF filter with a pore size of 5 microns): Preliminary filtration of raw water to remove coarser particles, colloids, suspended solids, etc. in the water.
    ➣ Second stage: Granular activated carbon: high-efficiency adsorption of odor, color, organic matter, and heavy metals in water.
    ➣ Third stage: Compressed activated carbon: further remove residual chlorine, organic compounds, color, odor, turbidity, etc.
    ➣ The fourth stage: RO reverse osmosis membrane: 0.0001 micron pore size, effectively removes organic impurities such as viruses and heavy metals in water.
    ➣ The fifth stage: Grade 2 RO reverse osmosis membrane: pore diameter 0.0001 micron, further remove viruses, heavy metals and other impurities in water.



    Product Image

    Product consumables list

    No

    Filter element

    Replace cycle

    Quantity

    Remark

    1

    11’’ PP cotton

    About 3-6 month

    1 pc



    2

    11’’ activated carbon

    About 3-6 month

    2 pcs

    3

    150 GPD RO membrane

    About1- 2 years

    1 pc

    4

    100 GPD RO Low pressure membrane

    About1- 2 years

    1 pc

    Note: The filter replacement cycle in the table is estimated based on previous customer experience. It is only a suggestion. The specific period is determined by the water quality.
