PRO-PLUS-DI(150-250LPH)

  • Commodity name： PRO-PLUS-DI(150-250LPH)

Category:

PRO-PLUS-DI(150-250LPH)

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Specification

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Remark

    PRO-PLUS-DI series

    150L/H

    200L/H

    250L/H

    7-10 working days after payment

    1 year

    T/T 100% in advance





    Product feature

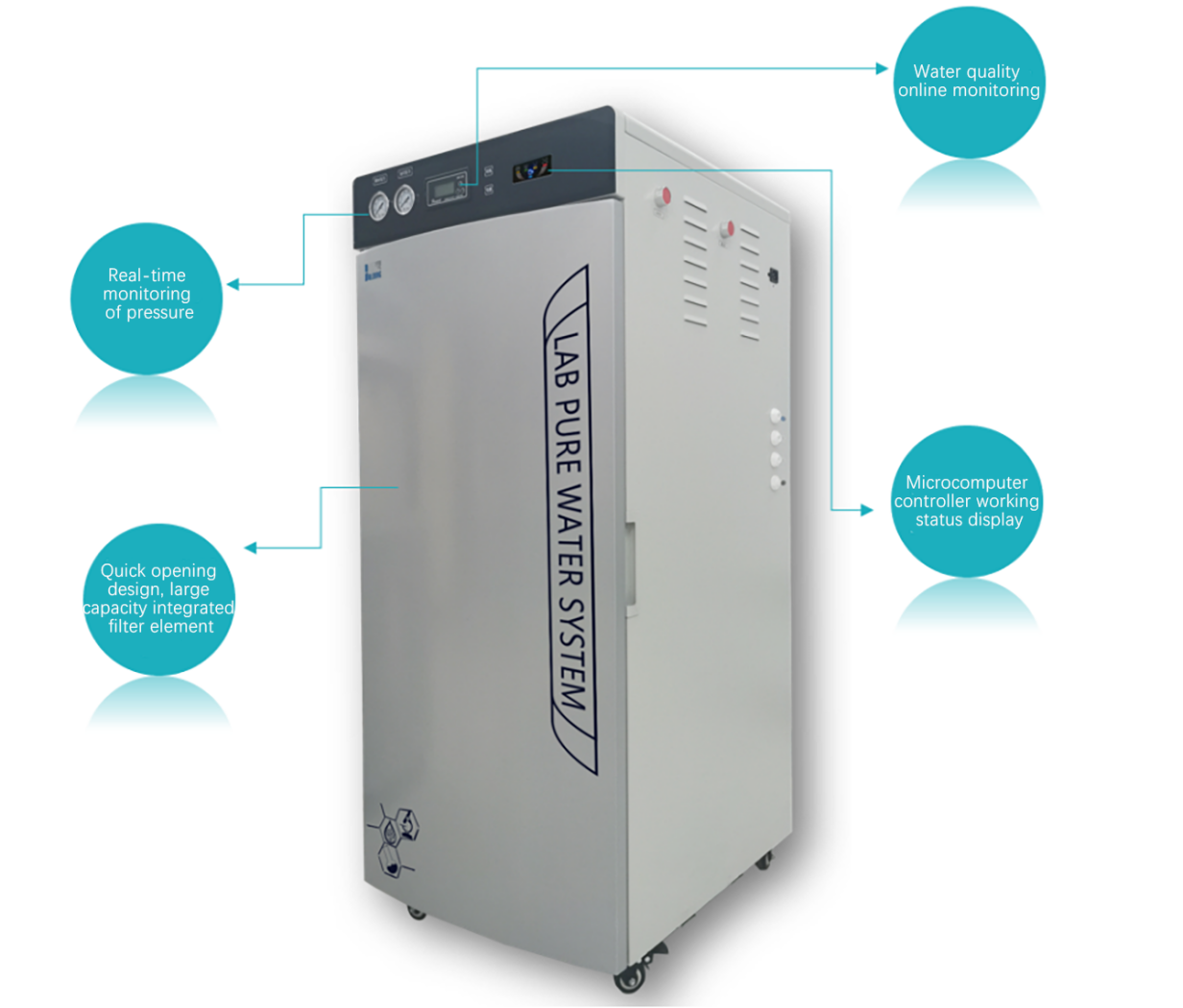

    ➣ Ergonomic design, the machine is beautiful and generous in compliance with GLP requirements
    ➣ Fully automatic microcomputer control system, online water quality monitoring system, and filter element online monitoring
    ➣ New quick plug-in connector, filter column replacement and maintenance is more convenient for the electrical and water channels to be completely separated.
    ➣ Fully automatic RO membrane anti-fouling washing program and regular washing program to prolong the service life of RO membrane
    ➣ Power, water source, pump, flush, water shortage, full water status display, understand the machine running status
    ➣ Floor-standing design, with movable and fixed feet at the bottom, making installation and movement more convenient
    ➣ RO water, ultra pure water, two kinds of water outlets
    ➣ Free TDS water quality test pen



    Parameter

    PRO-PLUS-DI series deionized water machine

    production

    150/200/250 liter per hour

    The water requirements

    Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃,TDS<200ppm

    RO water parameter

    Ion rejection rate

    97%-99% (when using a new RO film)

    Organic matter rejection rate

    >99% when MW>200 Dalton

    Particle and bacterial rejection

    > 99%

    DI water parameter

    Resistivity (25℃)

    10 to 16 MΩ. cm @ 25 ℃

    Conductivity

    < 0.1 us/cm

    Heavy metal ion

    < 0.01 ppb

    Electrical requirements

    100V/60Hz, 48-72W

    The system configuration

    Host machine (including 1 set of purification column)+pressure water storage tank +TDS pen + accessory bag



    Process

    Filter function

    Product name


    Function

    Replace cycle

    20’’ 5 μm PP cotton

    remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

    About 4-6 month

    20’’ Refined activated carbon

    remove color, odor, residual chlorine and heavy metals

    About 4-6 month

    Reverse osmosis membrane

    filter out <1nm pollutants, ions, particles

    About 1-2 years

    25L ultra purified tank

    ion exchange resin bed, H+ and OH- ion removal

    About 50 tons



    Machine SKU

    SKU

    Specification

    PRO-PLUS-DI-150

    150L/H, Standard type, RO pure water, DI deionized water

    PRO-PLUS-DI-200

    200L/H, Standard type, RO pure water, DI deionized water

    PRO-PLUS-DI-250

    250L/H, Standard type, RO pure water, DI deionized water
