Medium LD-DI-G(45-120LPH)

  • Commodity name： Medium LD-DI-G(45-120LPH)

Category:

Medium LD-DI-G(45-120LPH)

Support:

sales03@leading021.com

Get a Quote
Related Products
  • Product Description

  • Specification

    Model No.

    Capacity

    Delivery time

    Warranty

    Payment term

    Remark

    Medium LD-DI-G series

    45L/H

    60L/H

    90L/H

    120L/H

    7-10 working days after payment

    1 year

    T/T 100% in advance





    Product feature

    ➣ Double LCD screens, fully automatic microcomputer control system
    ➣ Water quality online monitoring system
    ➣ Automatic RO membrane anti-scaling flushing program and timed flushing procedures to extend RO membrane lifetime.
    ➣ Real-time display working status like power, water, pump, flush, water shortage and water full to understand the machine running status
    ➣ Floor-standing design, with activated and fixed stand bar at the bottom, easy to install and move
    ➣ RO water, deionized water, two water outlets
    ➣ Present TDS test pen



    Process

    Parameter

    Medium LD-DI-G series deionized water machine

    production

    45/60/90/120 liter per hour

    The water requirements

    Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃,TDS<200ppm

    RO water parameter

    Ion rejection rate

    97%-99% (when using a new RO film)

    Organic matter rejection rate

    >99% when MW>200 Dalton

    Particle and bacterial rejection

    > 99%

    DI water parameter

    Resistivity (25℃)

    10 to 16 MΩ. cm @ 25 ℃

    Conductivity

    < 0.1 us/cm

    Heavy metal ion

    < 0.01 ppb

    Electrical requirements

    100V/60Hz, 48-72W

    The system configuration

    Host machine (including 1 set of purification column)+pressure water storage tank +TDS pen + accessory bag



    Filter consumables list

    Product name


    Function

    Replace cycle

    20’’ 5 μm PP cotton

    remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

    About 4-6 month

    20’’ Refined activated carbon

    remove color, odor, residual chlorine and heavy metals

    About 4-6 month

    Reverse osmosis membrane

    filter out <1nm pollutants, ions, particles

    About 1-2 years

    12L ultra purified tank

    ion exchange resin bed, H+ and OH- ion removal

    About 20 tons

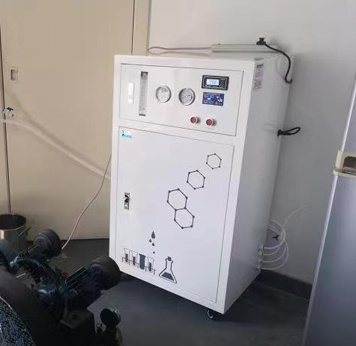

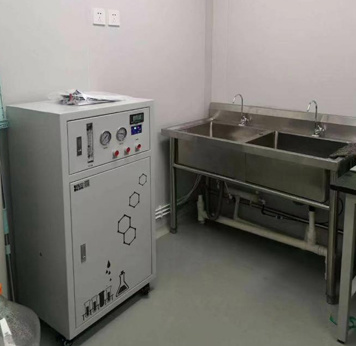

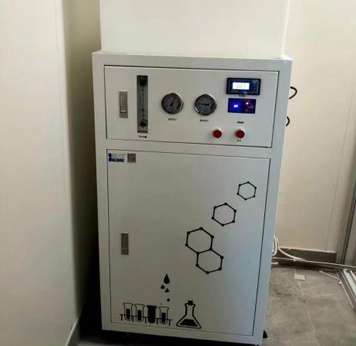

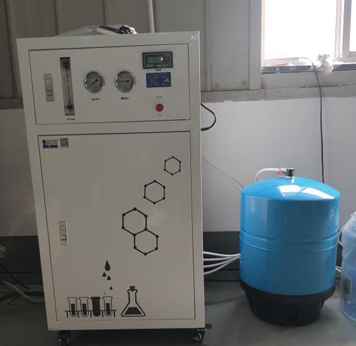

    User cases



    Machine SKU

    SKU

    Specification

    Medium LD-DI-G-45

    45L/H, Standard type, RO pure water, DI deionized water

    Medium LD-DI-G-60

    60L/H, Standard type, RO pure water, DI deionized water

    Medium LD-DI-G-90

    90L/H, Standard type, RO pure water,DI deionized water

    Medium LD-DI-G-120

    120L/H, Standard type, RO pure water,DI deionized water
